HLMP-6500 Series
Manufacturer: Broadcom Limited
Beta
⌘K

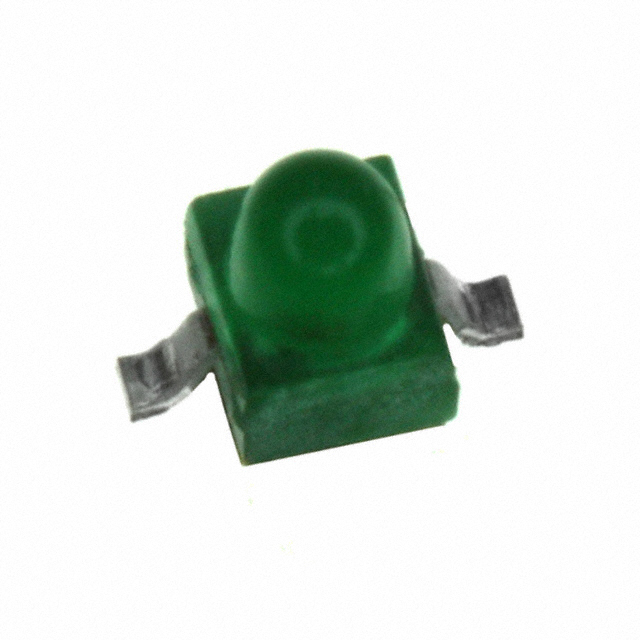

LED GREEN DIFFUSED GULL WING SMD
| Part | Wavelength - Peak | Lens Size [diameter] | Viewing Angle [custom] | Current - Test | Configuration | Lens Transparency | Color | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Lens Color | Supplier Device Package | Mounting Type | Millicandela Rating | Package / Case | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 565 nm | 1.78 mm | 90 ° | 10 mA | Standard | Diffused | Green | 569 nm | 2.1 V | 2.21 mm | 2.08 mm | Round with Domed Top | Green | Gull Wing | Surface Mount | 7 mcd | 2-SMD Gull Wing | 2.92 mm |
 Broadcom Limited | 565 nm | 1.78 mm | 90 ° | 10 mA | Standard | Diffused | Green | 569 nm | 2.1 V | 2.21 mm | 2.08 mm | Round with Domed Top | Green | Z-Bend | Surface Mount | 7 mcd | 2-SMD Z-Bend | 2.92 mm |
