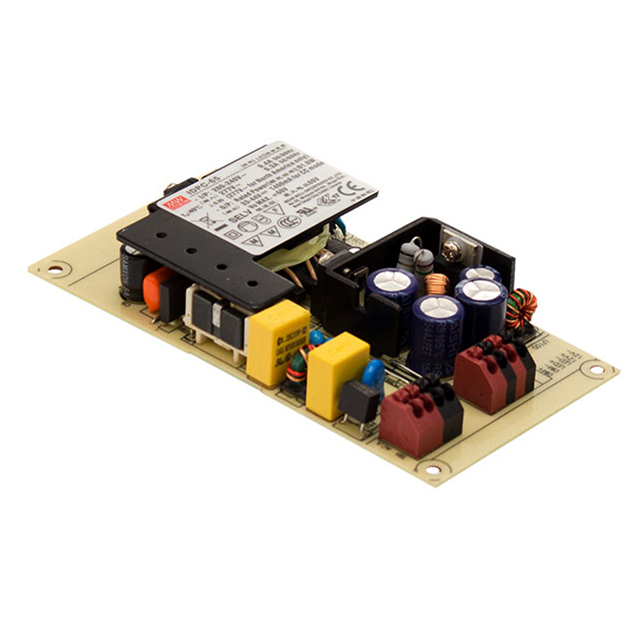

IDPC-65 Series

Catalog

LED DRVR CC AC/DC 27-36V 1.75A

Part	Mounting Type	Voltage - Input (Max) [Max]	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Termination Style	Voltage - Isolation	Features	Topology	Dimming	Number of Outputs	Voltage - Input (Min) [Min]

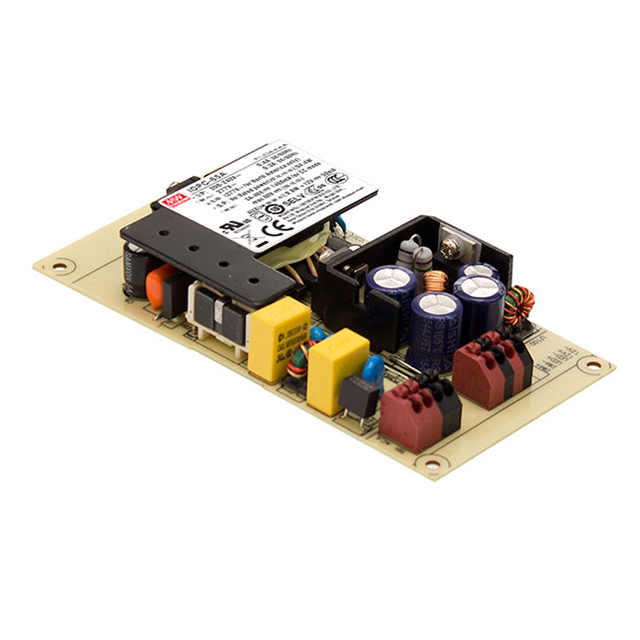

MEAN WELL USA Inc. IDPC-65A-1750	Chassis Mount	295 VAC	63 W	1.75 A	-20 ░C	40 °C	86 %	36 V	27 V	CB CCC CE cURus ENEC	130 mm	67.5 mm	5.12 in	20.5 mm	0.81 in	2.66 in	Constant Current	Terminal Block	3750 VDC	SCP	AC DC Converter	Analog PWM	1	180 VAC
MEAN WELL USA Inc. IDPC-65-1050	Chassis Mount	295 VAC	65 W	1.05 A	-20 ░C	40 °C	87 %	62 V	46 V	CB CCC CE cURus ENEC	130 mm	67.5 mm	5.12 in	20.5 mm	0.81 in	2.66 in	Constant Current	Terminal Block	3750 VDC	SCP	AC DC Converter	Analog PWM	1	180 VAC
MEAN WELL USA Inc. IDPC-65A-1050	Chassis Mount	295 VAC	65 W	1.05 A	-20 ░C	40 °C	87 %	62 V	46 V	CB CCC CE cURus ENEC	130 mm	67.5 mm	5.12 in	20.5 mm	0.81 in	2.66 in	Constant Current	Terminal Block	3750 VDC	SCP	AC DC Converter	Analog PWM	1	180 VAC
MEAN WELL USA Inc. IDPC-65A-1400	Chassis Mount	295 VAC	64 W	1.4 A	-20 ░C	40 °C	86 %			CB CCC CE cURus ENEC	130 mm	67.5 mm	5.12 in	20.5 mm	0.81 in	2.66 in	Constant Current	Terminal Block	3750 VDC	SCP	AC DC Converter	Analog PWM	1	180 VAC
