AEA38 Series

Catalog

CONN RCPT HSG MALE 26POS PNL MT

Part	Shell Finish	Contact Shape	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Note	Connector Type	Mounting Feature	Type	Shielding	Material Flammability Rating	Housing Color	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Mounting Type	Fastening Type	Shell Material	Shell Size - Insert	Insert Material
TE Intercontec AEA385N0000002K000	Nickel	Circular	2 pcs	Connector O-Ring	-20 °C	130 °C	Contacts Not Included	Receptacle Housing	Flange	For Male Pins	Unshielded	UL94 V-0	Silver	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	26	Panel Mount	Push-Twist	Zinc Die Cast	M27-26	PBT Polybutylene Terephthalate

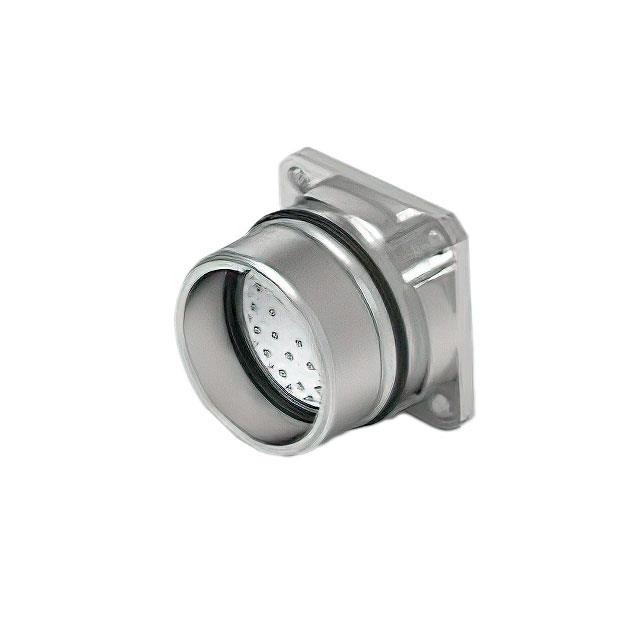

TE Intercontec AEA384N0000002K000	Nickel	Circular	2 pcs	Connector O-Ring	-20 °C	130 °C	Contacts Not Included	Receptacle Housing	Flange	For Male Pins	Unshielded	UL94 V-0	Silver	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	26	Panel Mount	Push-Twist	Zinc Die Cast	M27-26	PBT Polybutylene Terephthalate
