TXR40AB00 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

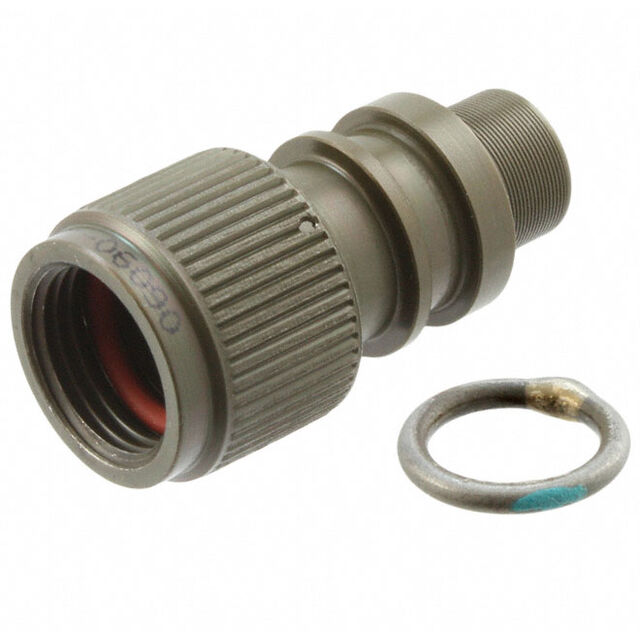

CONN BACKSHELL ADPT SZ11 B M15
| Part | For Use With/Related Products | Includes | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Features | Shielding | Thread Size | Cable Exit | Ingress Protection | Shell Size - Insert | Shell Size - Insert | Material | Plating | Color | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | Backshell Heat Shrink Adapter | 21 mm | 0.827 in | Tinel Lock | Shielded | M15x1 | 180 ° | Environment Resistant | B | 11 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 43.5 mm | 1.713 in | Tinel Lock | Shielded | M37x1 | 180 ° | Environment Resistant | J | 25 | Aluminum Alloy | Cadmium | Olive Drab | |
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 18 mm | 0.709 " | Tinel Lock | Shielded | M12x1 | 180 ° | Environment Resistant | A | 9 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | Backshell Heat Shrink Adapter | 21 mm | 0.827 in | Tinel Lock | Shielded | M15x1 | 180 ° | Environment Resistant | B | 11 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 32.49 mm | 1.279 " | Tinel Lock | Shielded | M25x1 | 180 ° | Environment Resistant | E | 17 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 32.49 mm | 1.279 " | Tinel Lock | Shielded | M25x1 | 180 ° | Environment Resistant | E | 17 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | Backshell Heat Shrink Adapter | 18 mm | 0.709 " | Tinel Lock | Shielded | M12x1 | 180 ° | Environment Resistant | A | 9 | Aluminum Alloy | Cadmium | Olive Drab | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 0.965 in | Chain Attachment Tinel Lock | Shielded | M18x1 | 180 ° | Environment Resistant | C | 13 | Aluminum Alloy | Cadmium | Olive Drab | 24.5 mm | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 0.965 in | Tinel Lock | Shielded | M18x1 | 180 ° | Environment Resistant | C | 13 | Aluminum Alloy | Cadmium | Olive Drab | 24.5 mm | |
TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | Backshell Heat Shrink Adapter | 37 mm | 1.457 in | Tinel Lock | Shielded | M31x1 | 180 ° | Environment Resistant | G | 21 | Aluminum Alloy | Cadmium | Olive Drab |
