153CMQ Series

Catalog

DIODE MOD SCHOTT 80V 75A TO-249

Part	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Diode Configuration	Mounting Type	Technology
SMC Diode Solutions 153CMQ080	200 mA 500 ns	175 ░C	-55 °C	75 A	1.5 mA	TO-249	80 V	75 A	960 mV	D-60 TO-249AA (Modified)	1 Pair Common Cathode	Chassis Mount	Schottky

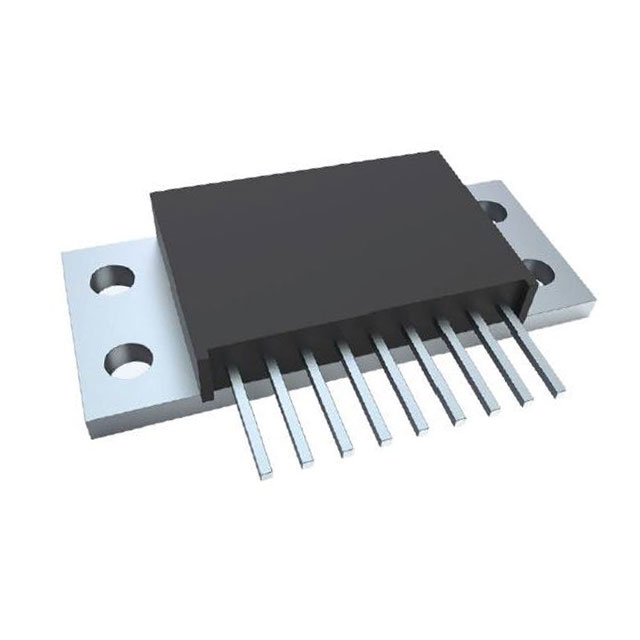

SMC Diode Solutions 153CMQ100	200 mA 500 ns	175 ░C	-55 °C	150 A	1.5 mA	TO-249	100 V	1.19 V		D-60 TO-249AA (Modified)	1 Pair Common Cathode	Chassis Mount	Schottky
