79821 Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Termination	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Connector Type	Contact Finish - Post

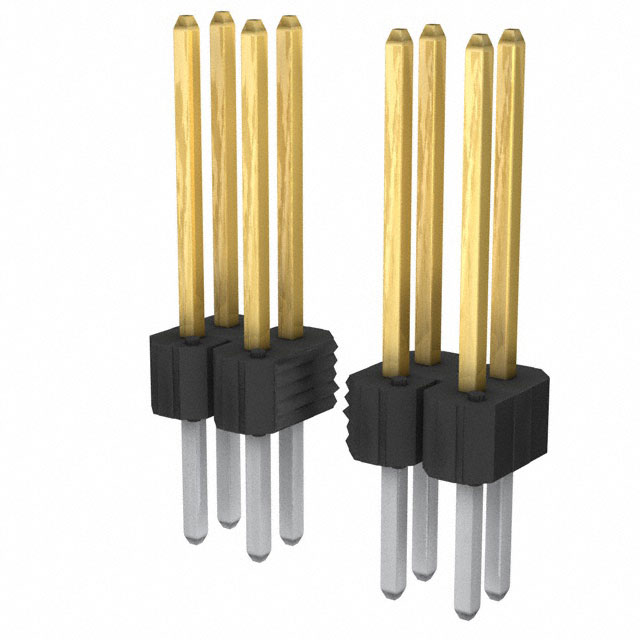

Amphenol ICC (FCI) 79821-150HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	50	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-170HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	70	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-130HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	30	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-152HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	52	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-162HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	62	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-156HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	56	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
Amphenol ICC (FCI) 79821-160HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	60	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header

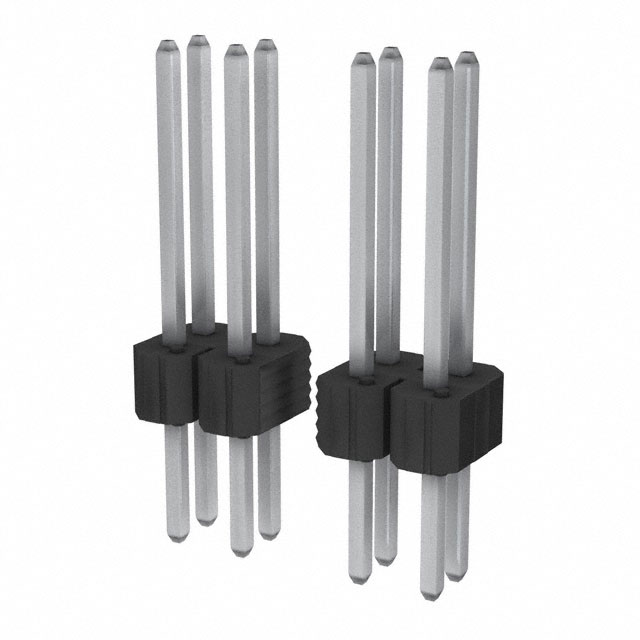

Amphenol ICC (FCI) 79821-458HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	58	Through Hole	100 çin	2.54 çm	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A		UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header	Tin

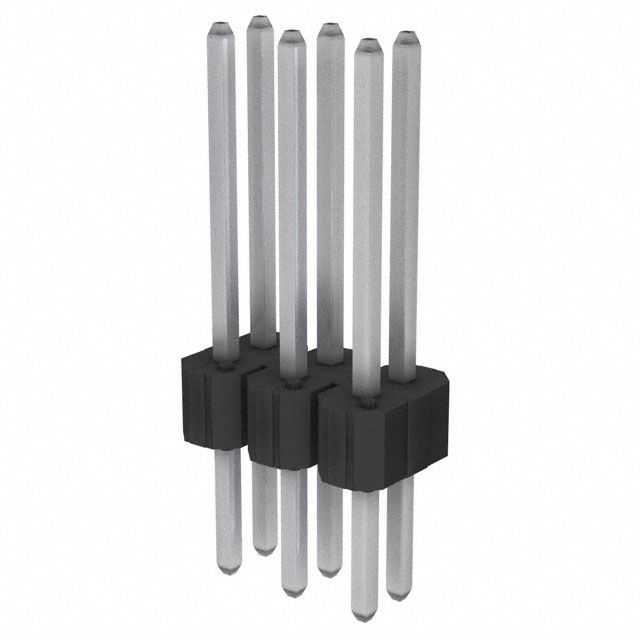

Amphenol ICC (FCI) 79821-406HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	6	Through Hole	100 çin	2.54 çm	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A		UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header	Tin
Amphenol ICC (FCI) 79821-122HLF	0.73 in	18.54 mm	0.1 in	2.54 mm	Push-Pull	22 positions	Through Hole	30 Áin	0.76 Ám	All	5.08 mm	0.2 in	Square	Black	Male Pin	10.92 mm	0.43 in	Phosphor Bronze	Unshrouded	Solder	5 A	Gold or Gold GXT™	UL94 V-0	2.54 mm	0.1 in	110 VDC	0.1 in	2.54 mm	2	Header
