TFM-125 Series

Catalog

CONN HEADER SMD 50POS 1.27MM

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Style	Contact Finish - Mating	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Current Rating (Amps)	Fastening Type	Connector Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Post	Features	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Contact Material	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. TFM-125-02-L-D-A-K-TR	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.33 mm	0.131 in	Black	Tin	Board Guide Pick and Place	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
Samtec Inc. TFM-125-01-H-D-RE1-WT	-55 °C	125 °C	6.1 mm	0.24 in	Solder	Board to Board Cable	Gold	275 VAC	Through Hole Right Angle	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Elevated Header	Male Pin	0.05 in	1.27 mm	50	2	3.53 mm	0.139 in	Black	Gold	Solder Retention	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall	3 µin	0.076 µm	0.078 in	1.98 mm
Samtec Inc. TFM-125-02-H-D-LC-K	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.33 mm	0.131 in	Black	Gold	Board Lock Pick and Place	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall	3 µin	0.076 µm
Samtec Inc. TFM-125-12-L-D-K	-55 °C	125 °C	7.37 mm	0.29 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	2.9 A 3.2 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.53 mm	0.139 in	Black	Tin	Pick and Place	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
Samtec Inc. TFM-125-13-L-D-A-K	-55 °C	125 °C	7.37 mm	0.29 in	Solder	Board to Board Cable	Gold	275 VAC	Through Hole	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.53 mm	0.139 in	Black	Tin	Board Guide Pick and Place	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall					0.111 in	2.82 mm
Samtec Inc. TFM-125-02-S-D	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.33 mm	0.131 in	Black	Tin		0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall

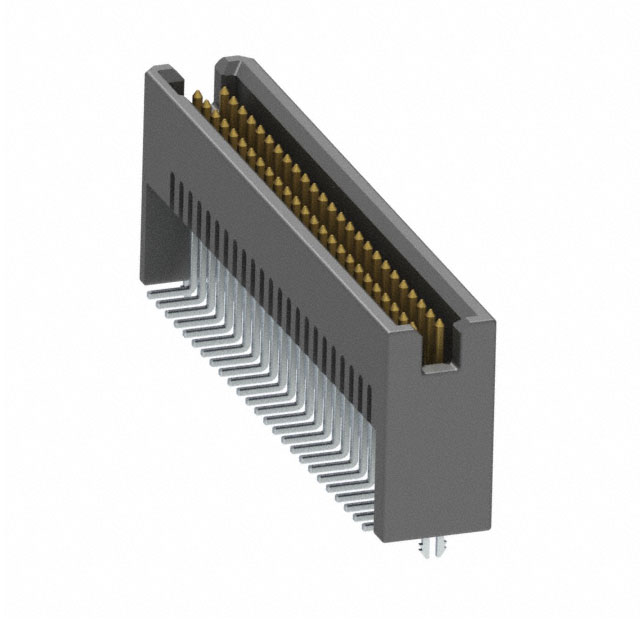

Samtec Inc. TFM-125-32-S-D-LC-K	-55 °C	125 °C	11.05 mm	0.435 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.53 mm	0.139 in	Black	Tin	Board Lock Pick and Place	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
Samtec Inc. TFM-125-02-S-S-A	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin				1	3.33 mm	0.131 in	Black	Tin	Board Guide	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
Samtec Inc. TFM-125-02-S-D-WT-K-TR	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.33 mm	0.131 in	Black	Tin	Pick and Place Solder Retention	0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
Samtec Inc. TFM-125-02-L-D-TR	-55 °C	125 °C	5.6 mm	0.22 in	Solder	Board to Board Cable	Gold	275 VAC	Surface Mount	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	2.9 A	Push-Pull	Header	Male Pin	0.05 in	1.27 mm	50	2	3.33 mm	0.131 in	Black	Tin		0.05 in	1.27 mm	All	UL94 V-0	Square	Phosphor Bronze	Shrouded - 4 Wall
