725-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K

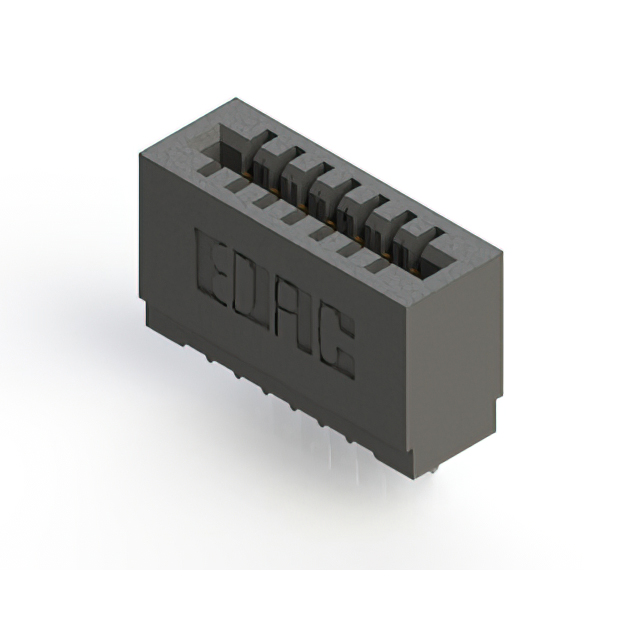

CONN EDGE SINGLE FML 7POS 0.100
| Part | Termination Rows | Material - Insulation | Read Out | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Finish | Contact Type | Gender | Number of Positions | Number of Rows | Color | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | Non Specified - Single Edge | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | Gold | Cantilever | Female | 7 | 1 | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Press-Fit | -40 C | 105 ░C | 7 |
