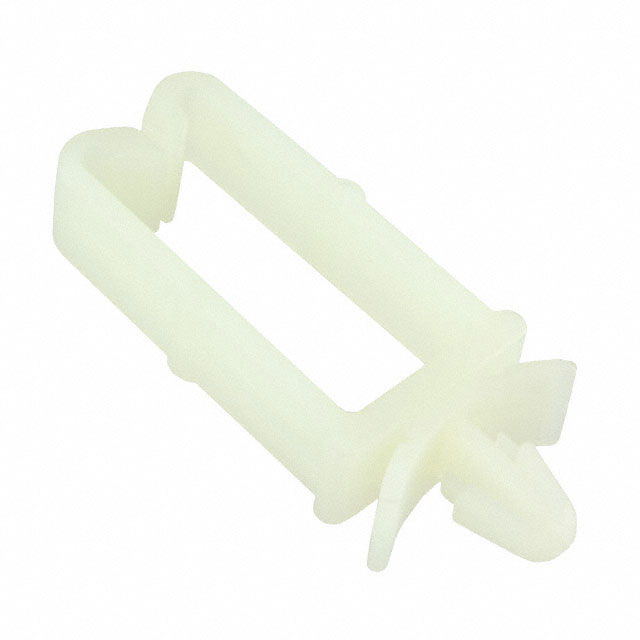

VWS3775 Series
Manufacturer: Panduit Corp
Beta
⌘K
VERTICAL WIRE SADDLE, .37" X .75" (9.398
| Part | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Material | Type | Mounting Type | Width [y] | Width | Panel Hole Size [Max] | Panel Hole Size [Max] | Panel Hole Size [Min] | Panel Hole Size [Min] | Height | Height | Opening Size [x] | Opening Size [z] | Opening Size [x] | Opening Size [z] | Material Flammability Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.76 mm | 0.08 in | 0.03 in | 2.03 mm | Polyamide (PA66) Nylon 6/6 | Clip Wire Saddle | Arrowhead Winged | 0.25 in | 6.35 mm | 0.192 in | 4.88 mm | 0.187 in | 4.75 mm | 1.172 in | 29.77 mm | 9.52 mm | 0.75 " | 0.375 " | 19.05 mm | UL94 V-2 | Natural |
