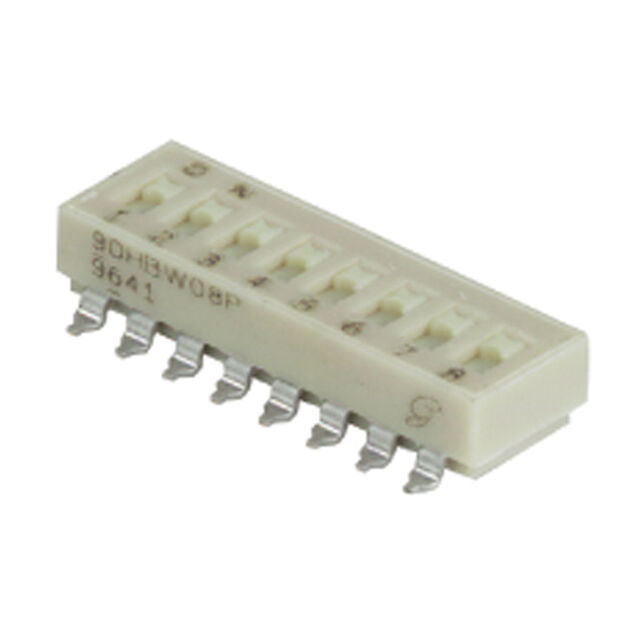

90HB Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH DIP ON OFF SPST 6 RECESSED SLIDE 0.1A 30VDC GULL WING 2000CYCLES 2.54MM SMD T/R
| Part | Contact Finish | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Washable | Contact Material | Circuit | Number of Positions | Mounting Type | Features | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Termination Style | Length | Length | Mechanical Life | Body Material | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 6 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | ||||||
 Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 8 | Surface Mount | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | |||||||
Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 10 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | ||||||
Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 4 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | ||||||
Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 7 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | ||||||
Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 2 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.19 in | 4.83 mm | Gull Wing | ||||||

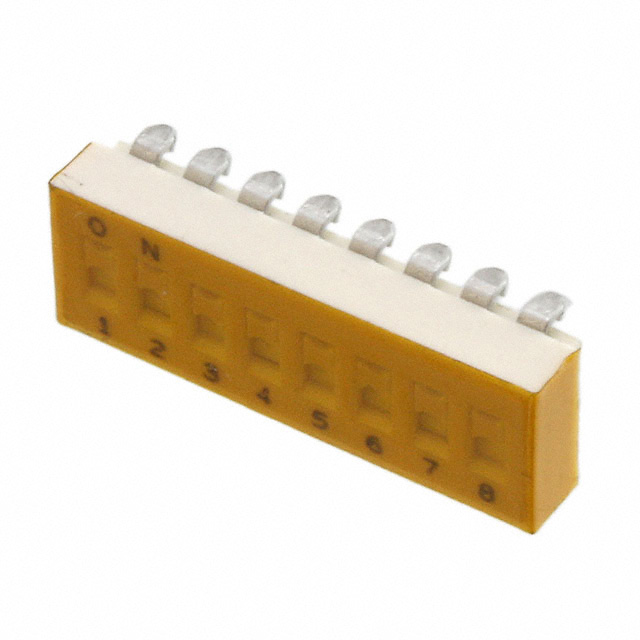

Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 7 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.22 in | 5.59 mm | J Lead | ||||||
 Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 8 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.22 in | 5.59 mm | J Lead | 0.87 in | 22.1 mm | 2000 Cycles | Thermoplastic | 2000 Steps | |
Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 5 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.22 in | 5.59 mm | J Lead | ||||||
 Grayhill Inc. | Gold | 24 VDC | Slide (Standard) | Flush Recessed | 25 mA | Copper Alloy | SPST | 10 | Surface Mount | Tape Seal | 2.54 mm | 0.1 " | 85 °C | -40 C | 0.22 in | 5.59 mm | J Lead |
