0039-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Termination	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0039-2-17-01-30-02-02-0	-55 C	125 °C	4.12 mm	0.162 in	0.072 "	1.83 mm	Wire Wrap	Press-Fit	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	2.54 µm	100 µin	Tin-Lead	14.22 mm	0.56 in	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 0039-2-05-15-00-00-01-0					0.072 "	1.83 mm	Wire Wrap	Press-Fit										Unplated	14.22 mm	0.56 in	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 0039-2-17-15-30-27-02-0	-55 C	125 °C	4.12 mm	0.162 in	0.072 "	1.83 mm	Wire Wrap	Press-Fit	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.76 Ám	30 Áin	Gold	14.22 mm	0.56 in	1.45 mm	0.057 in

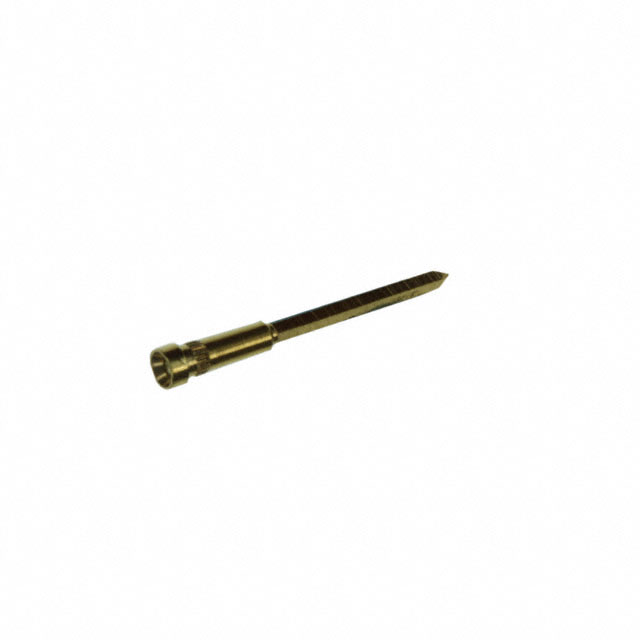

Mill-Max Manufacturing Corp. 0039-2-17-01-30-27-02-0	-55 C	125 °C	4.12 mm	0.162 in	0.072 "	1.83 mm	Wire Wrap	Press-Fit	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.76 Ám	30 Áin	Gold	14.22 mm	0.56 in	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 0039-2-17-15-30-14-02-0	-55 C	125 °C	4.12 mm	0.162 in	0.072 "	1.83 mm	Wire Wrap	Press-Fit	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.25 Ám	10 Áin	Gold	14.22 mm	0.56 in	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 0039-2-17-80-30-27-02-0	-55 C	125 °C	4.12 mm	0.162 in	0.072 "	1.83 mm	Wire Wrap	Press-Fit	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.76 Ám	30 Áin	Gold	14.22 mm	0.56 in	1.45 mm	0.057 in
