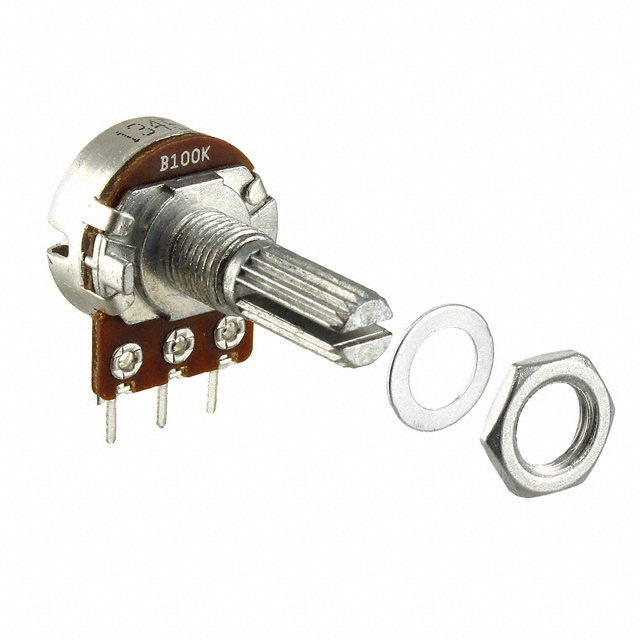

PDB181 Series
Manufacturer: Bourns Inc.
Beta
⌘K
PANEL CONTROL - 17MM-ST-CARBON /TRAY PACKAGING
| Part | Size - Body [diameter] | Size - Body [diameter] | Built in Switch | Number of Turns | Taper | Termination Style | Tolerance | Resistive Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Actuator Type | Rotation | Actuator Length [x] | Actuator Length [x] | Power (Watts) | Power (Watts) | Mounting Type | Adjustment Type | Resistance (Ohms) [custom] | Number of Gangs | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Logarithmic | Solder Lug | 20 % | Carbon | 6 mm | 0.236 in | 3/8-32 | Knurled and Slotted | 300 ░ | 0.748 in | 19 mm | 0.1 W | 0.1 W | Panel Mount | User Defined | 25 kOhms | 1 | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | Solder Lug | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Flatted | 300 ░ | 0.591 in | 15 mm | 0.2 W | 0.2 W | Panel Mount | User Defined | 1 | 20 kOhms | ||
Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | Solder Lug | 20 % | Carbon | 6 mm | 0.236 in | 3/8-32 | Round | 300 ░ | 0.748 in | 19 mm | 0.2 W | 0.2 W | Panel Mount | User Defined | 1 | 500 kOhms | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.984 in | 25 mm | 0.2 W | 0.2 W | Panel Mount | Side Adjustment | 1 | 10k | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Logarithmic | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.787 in | 20 mm | 0.1 W | 0.1 W | Panel Mount | Side Adjustment | 1 | 20 kOhms | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.591 in | 15 mm | 0.2 W | 0.2 W | Panel Mount | Side Adjustment | 1 | 10k | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.787 in | 20 mm | 0.2 W | 0.2 W | Panel Mount | Side Adjustment | 1 | 10k | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.591 in | 15 mm | 0.2 W | 0.2 W | Panel Mount | Side Adjustment | 50 kOhms | 1 | ||
 Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | PC Pins | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Knurled and Slotted | 300 ░ | 0.984 in | 25 mm | 0.2 W | 0.2 W | Panel Mount | Side Adjustment | 1 | 100k | ||
Bourns Inc. | 17 mm | 0.669 " | None | 1 | Linear | Solder Lug | 20 % | Carbon | 6 mm | 0.236 in | M7 x 0.75 | Flatted | 300 ░ | 0.591 in | 15 mm | 0.2 W | 0.2 W | Panel Mount | User Defined | 1 | 500 kOhms |
