ASP045 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Contact Material	Material Flammability Rating	Housing Material	Ingress Protection	Insulation Height	Insulation Height	Mounting Type	Voltage - UL	Contact Mating Finish	Features	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Plug Wire Entry	Number of Positions	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Color	Positions Per Level [custom]	Current - UL	Positions Per Level
METZ CONNECT USA Inc. ASP0450722	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	7	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black	7	10 A

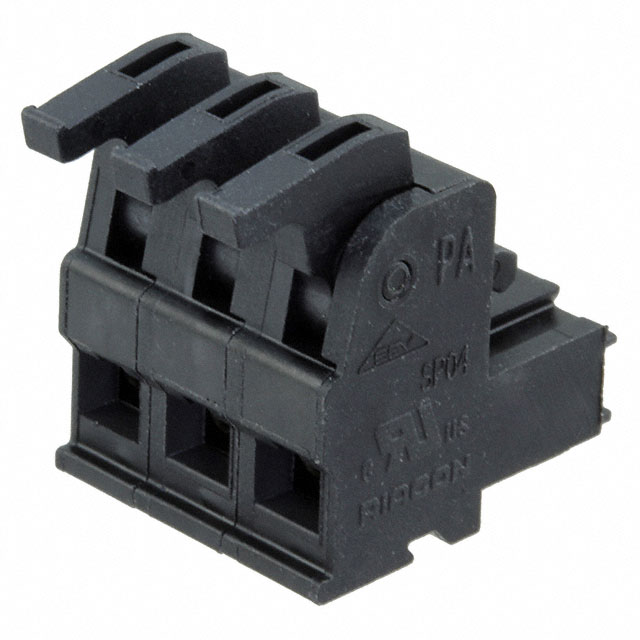

METZ CONNECT USA Inc. ASP0450322	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °		0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	3
METZ CONNECT USA Inc. ASP0451022	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	10	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	10
METZ CONNECT USA Inc. ASP0451222	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	12	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	12

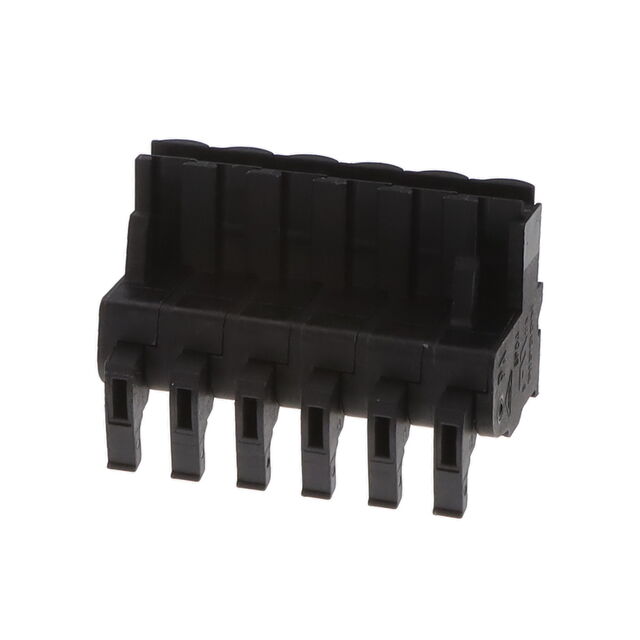

METZ CONNECT USA Inc. ASP0450622	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	6	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	6

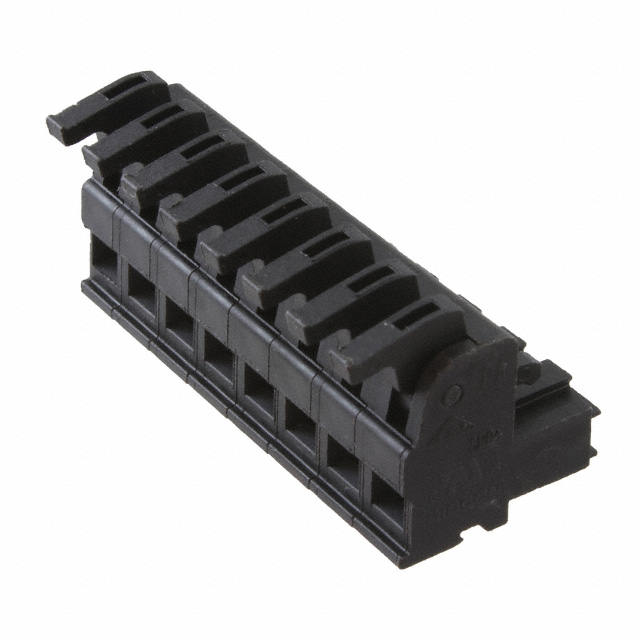

METZ CONNECT USA Inc. ASP0450822	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	8	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	8
METZ CONNECT USA Inc. ASP0451422	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	14	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	14
METZ CONNECT USA Inc. ASP0452422	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	24	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black	24	10 A
METZ CONNECT USA Inc. ASP0450422	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	4	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	4

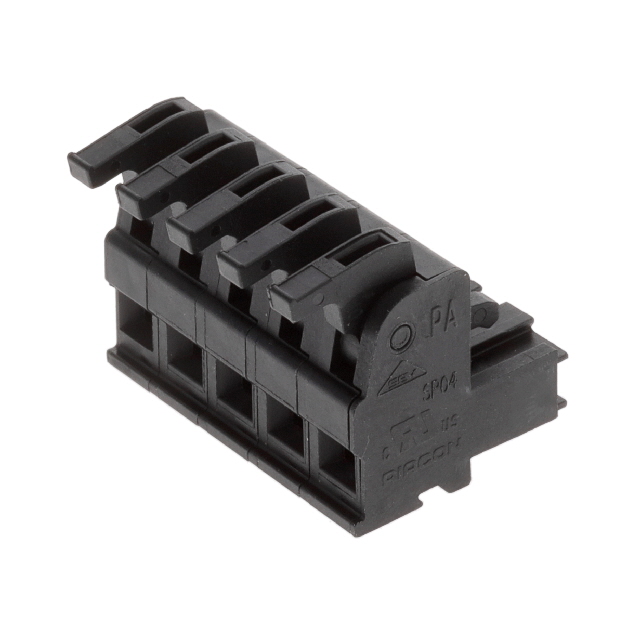

METZ CONNECT USA Inc. ASP0450522	Copper Alloy	UL94 V-0	Polyamide (PA46) Nylon 4/6	IP20	0.61 in	15.49 mm	Free Hanging (In-Line)	300 V	Tin	Lever Actuated Retention Latches (Non-Wire Side)	Screwless - Spring Cage Tension Clamp	0.08 mm²	1.5 mm²	1	180 °	5	0.197 in	5 mm	28 AWG	16 AWG	-40 C	105 ░C	Plug Female Sockets	Black		10 A	5
