796698 Series

Catalog

TERM BLOCK HDR 4POS 90DEG 5MM

Part	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Tail Length	Contact Tail Length	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Header Orientation	Voltage - UL	Termination Style	Contact Mating Finish	Number of Levels	Pitch	Pitch	Features	Type	Positions Per Level	Mounting Type	Number of Positions	Positions Per Level [custom]

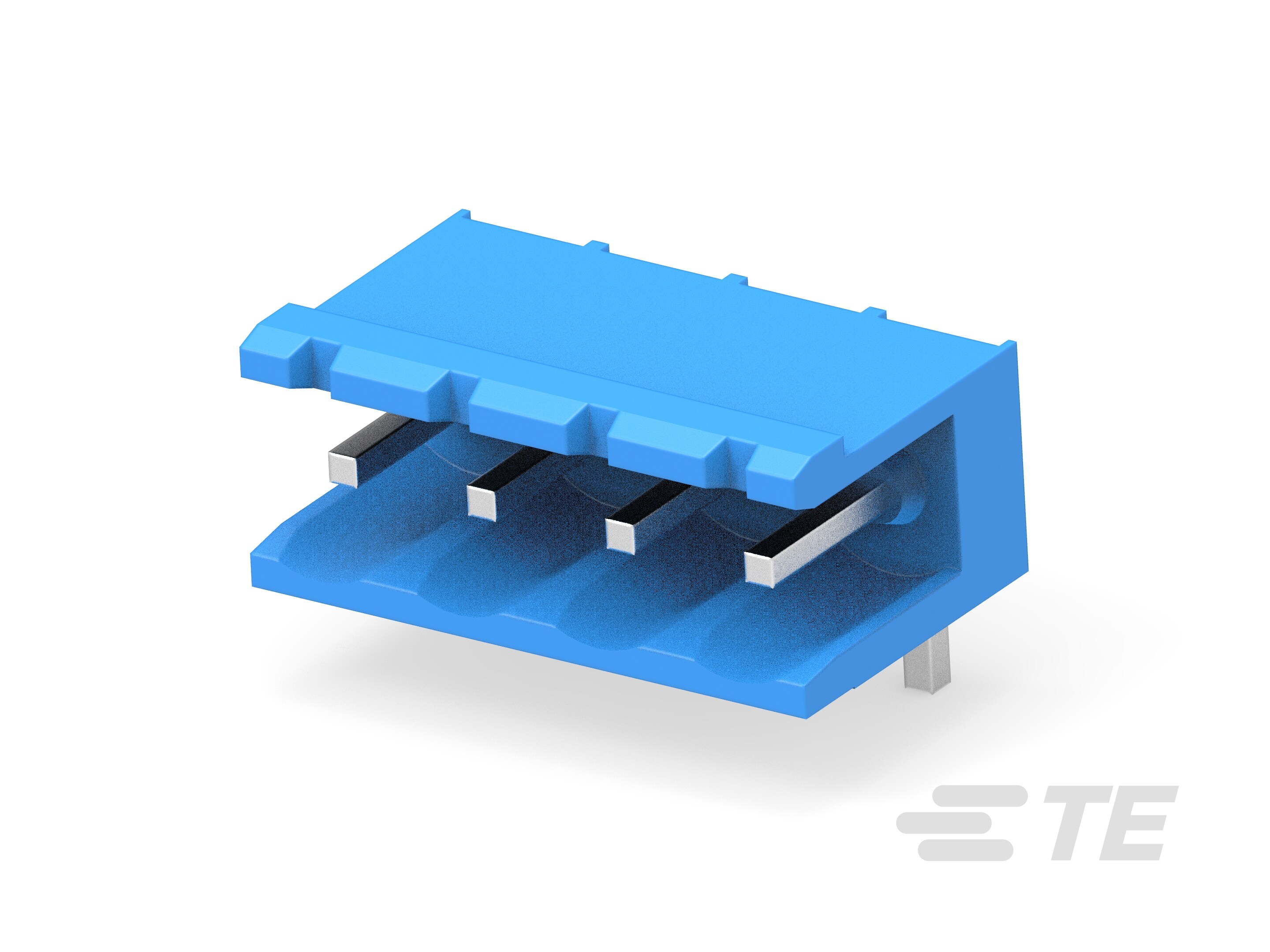

TE Connectivity AMP Connectors 796698-4	UL94 V-0	0.329 in	8.36 mm	0.138 in	3.5 mm	Copper Alloy	-40 C	110 °C	Blue	90° Right Angle	300 V	Solder	Tin	1	0.197 in	5 mm	Side Stacking	Header Male Pins Shrouded (2 Side)	4	Through Hole	4

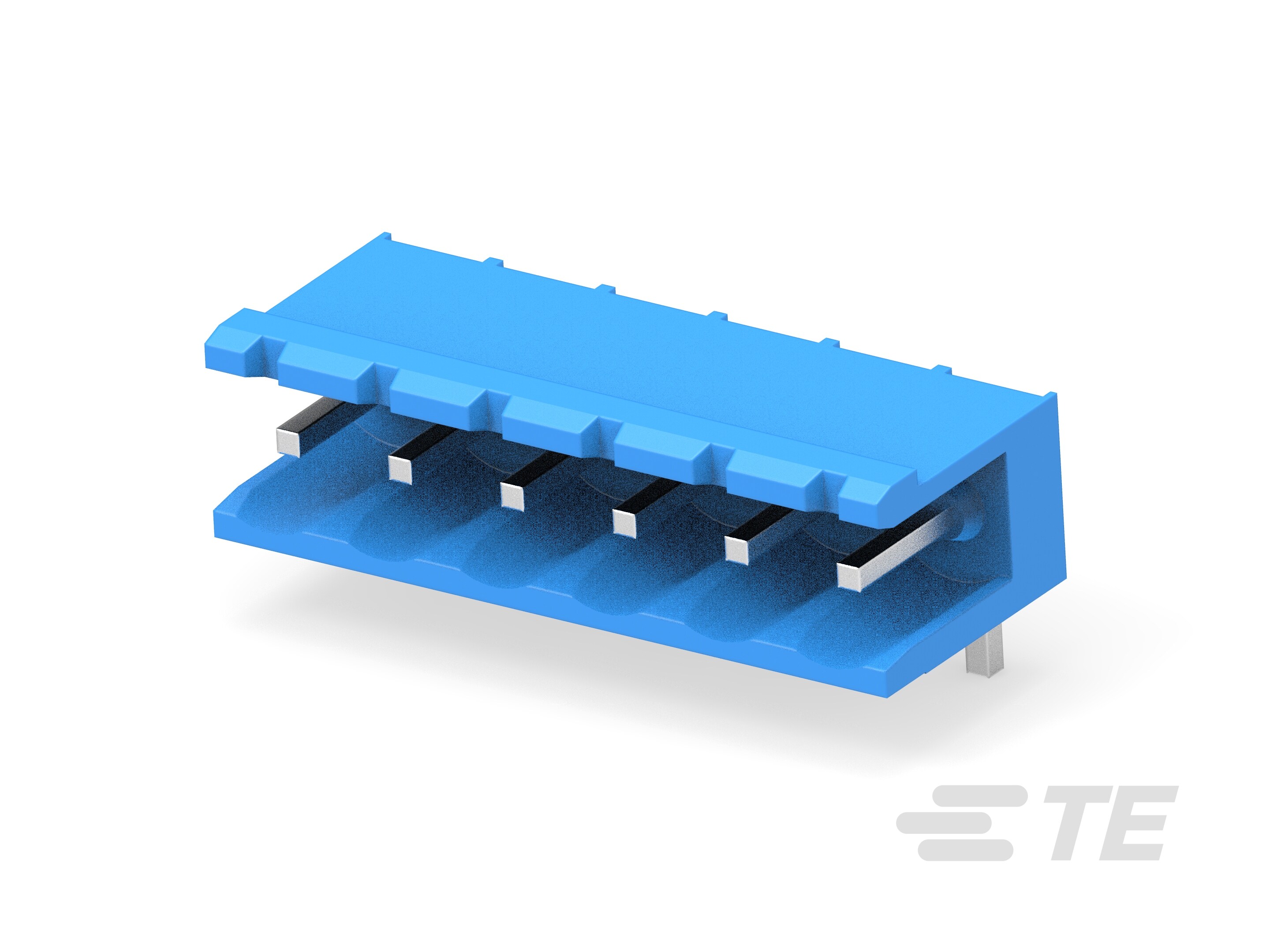

TE Connectivity AMP Connectors 796698-6	UL94 V-0	0.329 in	8.36 mm	0.138 in	3.5 mm	Copper Alloy	-40 C	110 °C	Blue	90° Right Angle	300 V	Solder	Tin	1	0.197 in	5 mm	Side Stacking	Header Male Pins Shrouded (2 Side)	6	Through Hole	6

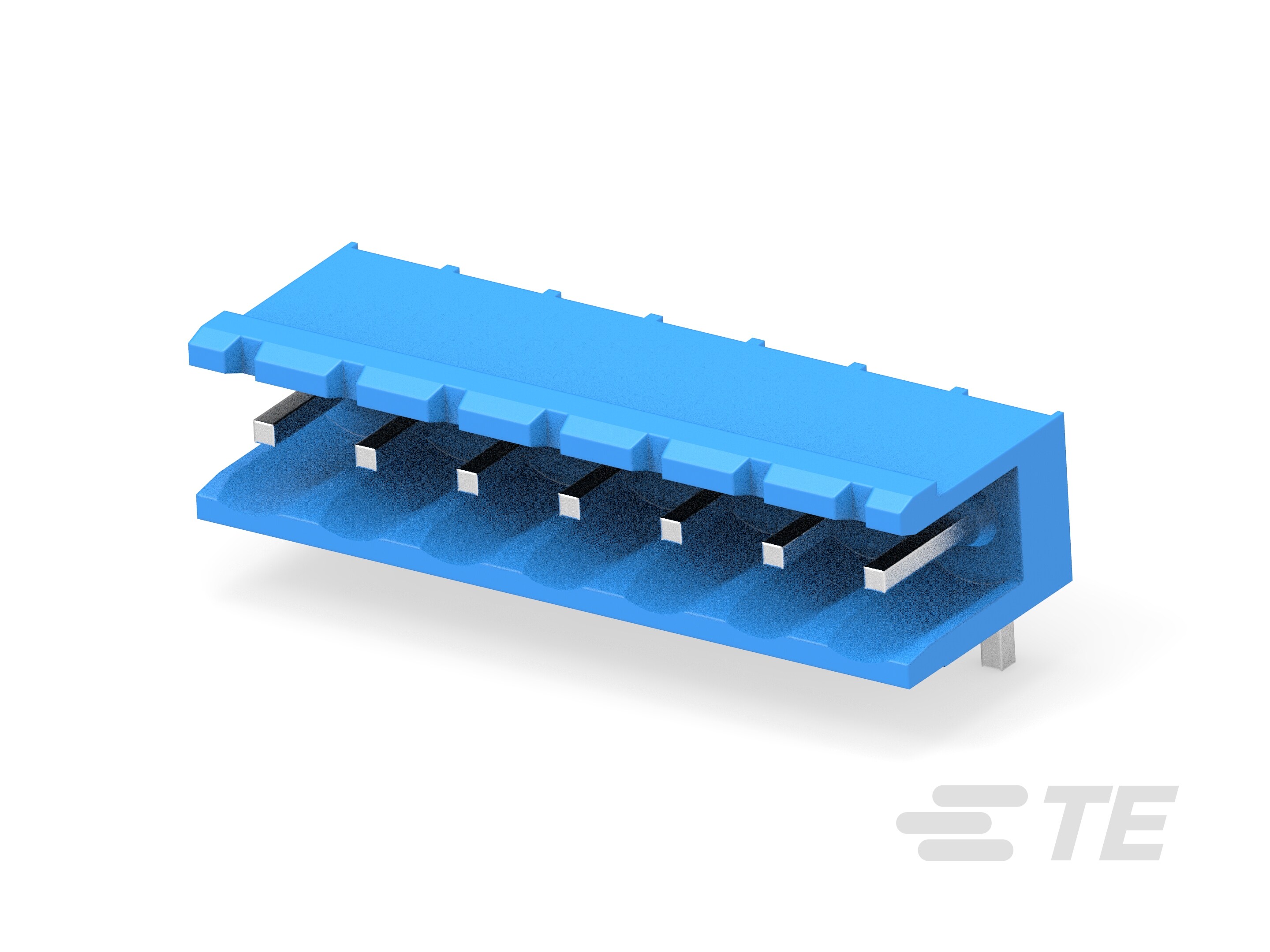

TE Connectivity AMP Connectors 796698-7	UL94 V-0	0.329 in	8.36 mm	0.138 in	3.5 mm	Copper Alloy	-40 C	110 °C	Blue	90° Right Angle	300 V	Solder	Tin	1	0.197 in	5 mm	Side Stacking	Header Male Pins Shrouded (2 Side)		Through Hole	7	7
TE Connectivity AMP Connectors 796698-2	UL94 V-0	0.329 in	8.36 mm	0.138 in	3.5 mm	Copper Alloy	-40 C	110 °C	Blue	90° Right Angle	300 V	Solder	Tin	1	0.197 in	5 mm	Side Stacking	Header Male Pins Shrouded (2 Side)	2	Through Hole	2
