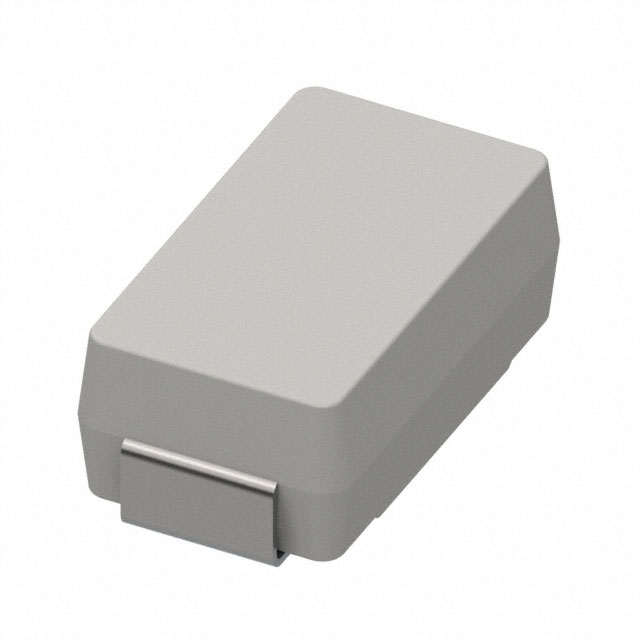

PICO SMF SLO-BLO FUSE 125V 2A
PICO SMF SLO-BLO FUSE 125V 2A
| Part | DC Cold Resistance | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage Rating - DC | Mounting Type | Package / Case | Breaking Capacity @ Rated Voltage | Fuse Type | Voltage Rating - AC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Response Time | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.071 Ohms | 7.24 mm | 3.05 mm | 4.32 mm | 0.285 " | 0.12 " | 0.17 in | 125 VDC | Surface Mount | 2-SMD J-Lead | 50 A | Board Mount (Cartridge Style Excluded) | 125 V | 2 A | -55 C | 125 °C | CSA PSE UL | Slow Blow | 7.6 |
LITTELFUSE | 0.071 Ohms | 7.24 mm | 3.05 mm | 4.32 mm | 0.285 " | 0.12 " | 0.17 in | 125 VDC | Surface Mount | 2-SMD J-Lead | 50 A | Board Mount (Cartridge Style Excluded) | 125 V | 2 A | -55 C | 125 °C | CSA PSE UL | Slow Blow | 7.6 |
