562A011 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

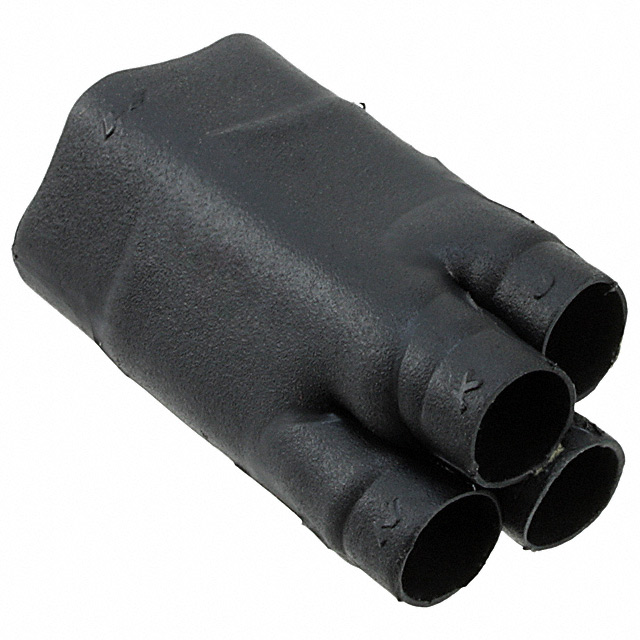

FLEX POLY MOLDED PART

Part	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length [x]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Shell Size - Insert	Material	Type	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Recovered Length [x]	Large Recovered Length [x]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 562A011-4-00-0	0.52 in	13.21 mm	24.13 mm	0.95 in	0.27 in	6.86 mm	11	Polyolefin (PO) Flexible	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.14 "	3.56 mm
TE Connectivity Aerospace, Defense and Marine 562A011-25-CS-2065-0
TE Connectivity Aerospace, Defense and Marine 562A011-100-0	0.52 in	13.21 mm	24.1 mm	0.949 in	0.272 in	6.91 mm	11	Polyolefin (PO) Semi-Flexible	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.138 "	3.51 mm
TE Connectivity Aerospace, Defense and Marine 562A011-12-0	0.52 in	13.21 mm	24.1 mm	0.949 in	0.272 in	6.91 mm	11	Fluoroelastomer (FKM) Flexible	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.138 "	3.51 mm
TE Connectivity Aerospace, Defense and Marine 562A011-3/86-0	0.52 in	13.21 mm	24.1 mm	0.949 in	0.272 in	6.91 mm	11	Polyolefin (PO) Semi-Rigid	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.138 "	3.51 mm
TE Connectivity Aerospace, Defense and Marine 562A011-25-0	0.52 in	13.21 mm	24.1 mm	0.949 in	0.272 in	6.91 mm	11	Elastomer Semi-Rigid	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.138 "	3.51 mm
TE Connectivity Aerospace, Defense and Marine 562A011-25/42-0	0.52 in	13.21 mm	24.13 mm	0.95 in	0.27 in	6.86 mm	11	Elastomer Fluid Resistant	Boot Transition - Breakout 4:1	6.6 mm	0.26 in	38.4 mm	1.512 in	Black	0.14 "	3.56 mm
