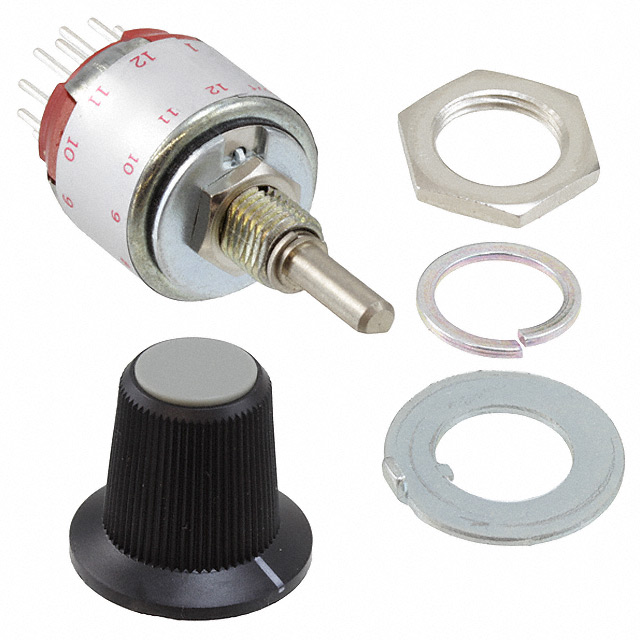

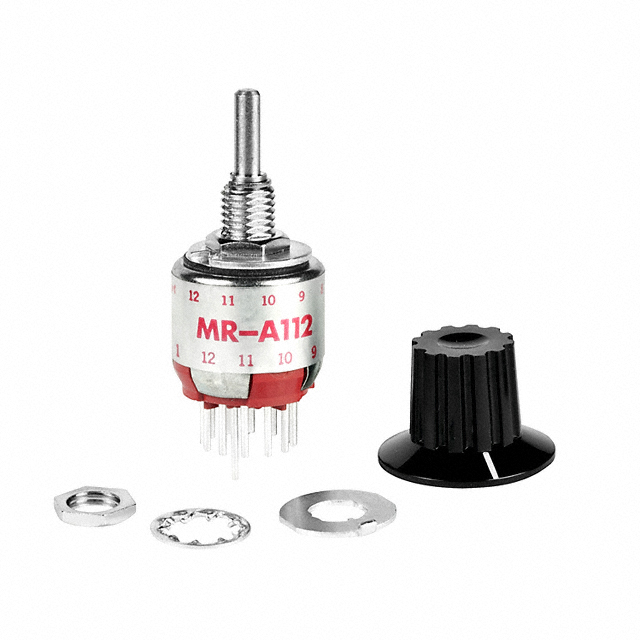

MRA112 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROTARY 2-12POS 250MA 125V
| Part | Panel Cutout Dimensions [diameter] | Mounting Type | Contact Timing | Current Rating (Amps) | Features | Angle of Throw | Index Stops | Contact Finish | Voltage Rating - AC | Depth Behind Panel [z] | Number of Decks [custom] | Actuator Type | Number of Positions [Max] | Number of Positions [Min] | Actuator Length [x] | Circuit per Deck | Termination Style | Number of Poles per Deck | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 13.01 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 15.8 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 14.3 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 14.3 mm | SP12T | PC Pin | 1 | Copper |
 NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 13 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 15.8 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 14.3 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 14.3 mm | SP12T | PC Pin | 1 | Copper |
NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 15.8 mm | SP12T | PC Pin | 1 | Copper |
 NKK Switches | 0.25 in | Panel Mount Through Hole | Non-Shorting (BBM) | 250 mA | Process Sealed | 30 ° | Adjustable | Silver | 125 V | 17 mm | 1 | Knob | 12 | 2 | 15.8 mm | SP12T | PC Pin | 1 | Copper |
