DB3C Series

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Ingress Protection	Operating Position	Operating Position	Actuator Type	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Termination Style	Pretravel	Pretravel	Operating Force	Mechanical Life	Circuit	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Differential Travel	Differential Travel	Pretravel
ZF Electronics DB3C-A1AA	IP50 - Dust Protected	0.33 in 0.331 in	8.4 mm	Round (Pin Plunger)	0.6 mm	0.024 " 0.025 in	100 mA	125 V	On-Mom	Solder Lug	0.04 in	1 mm	150 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.1 mm	0.004 in
ZF Electronics DB3C-A1LB	IP50 - Dust Protected	0.421 in	10.7 mm	Lever Straight	2 mm 2.05 mm	0.079 " 0.081 "	100 mA	125 V	On-Mom	Solder Lug	0.157 in	4 mm	60 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.5 mm 0.51 mm	0.02 in
ZF Electronics DB3C-A1RC	IP50 - Dust Protected	0.638 in	16.2 mm	Lever Roller	2 mm	0.079 "	100 mA	125 V	On-Mom	Solder Lug		0.178 in	55 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.6 mm	0.025 in	4.5 mm

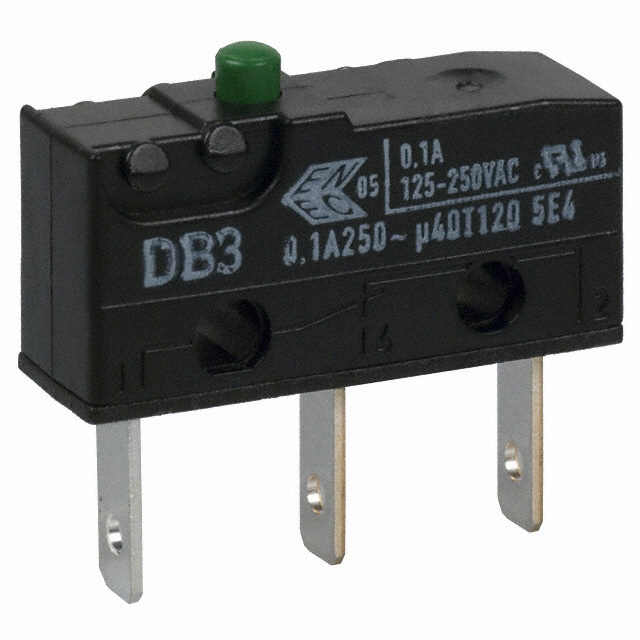

ZF Electronics DB3CB1AA	IP50 - Dust Protected	0.33 in	8.4 mm	Round (Pin Plunger)	0.6 mm	0.025 in	100 mA	125 V	On-Mom	Quick Connect - 0.110" (2.8mm)	0.04 in	1 mm	150 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.1 mm	0.004 in
ZF Electronics DB3C-A1LC	IP50 - Dust Protected	0.437 "	11.1 mm	Lever Straight	2 mm 2.05 mm	0.079 " 0.081 "	100 mA	125 V	On-Mom	Solder Lug		0.178 in	50 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.6 mm	0.025 in	4.5 mm
ZF Electronics DB3CD5AA	IP50 - Dust Protected	0.33 in	8.4 mm	Round (Pin Plunger)	0.6 mm	0.025 in	100 mA	125 V	On-Mom	PC Pin	0.04 in	1 mm	150 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Right Angle Through Hole	0.1 mm	0.004 in
ZF Electronics DB3C-B1LC	IP50 - Dust Protected	0.437 "	11.1 mm	Lever Straight	2 mm	0.079 "	100 mA	125 V	On-Mom	Quick Connect - 0.110" (2.8mm)		0.178 in	50 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.6 mm	0.025 in	4.5 mm

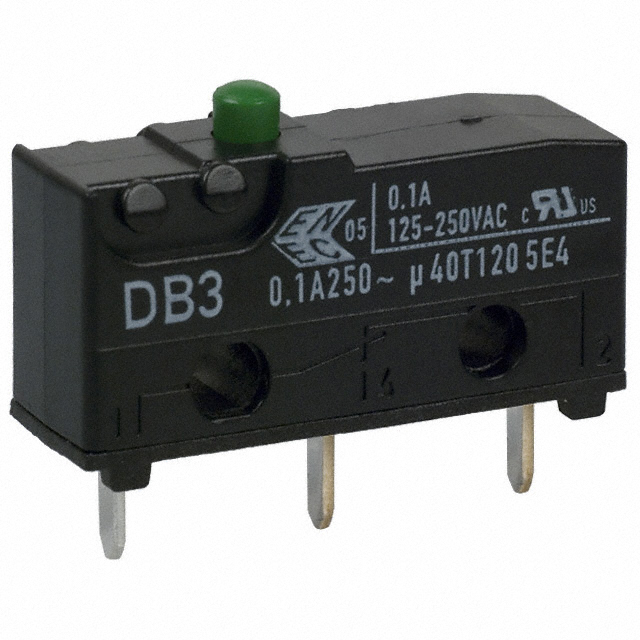

ZF Electronics DB3CC1AA	IP50 - Dust Protected	0.33 in	8.4 mm	Round (Pin Plunger)	0.6 mm	0.025 in	100 mA	125 V	On-Mom	PC Pin	0.04 in	1 mm	150 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Through Hole	0.1 mm	0.004 in

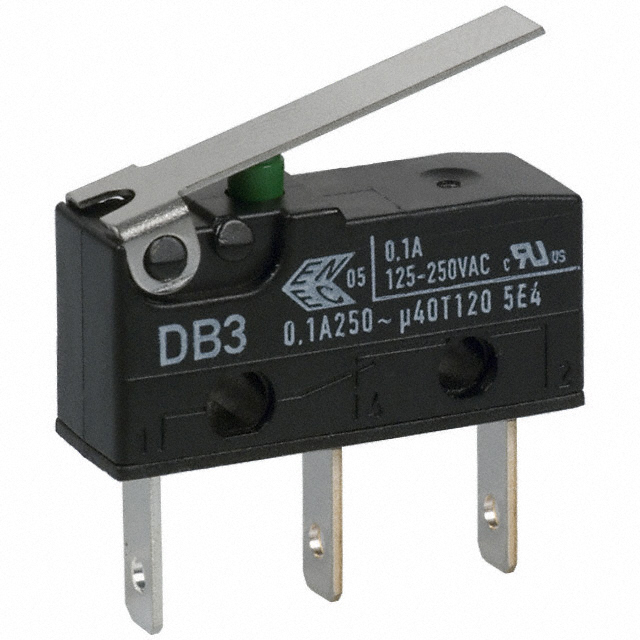

ZF Electronics DB3CB1LB	IP50 - Dust Protected			Lever Straight	2 mm	0.079 "	100 mA	125 V	On-Mom	Quick Connect - 0.110" (2.8mm)	0.157 in	4 mm	60 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.5 mm	0.02 in
ZF Electronics DB3C-B1RC	IP50 - Dust Protected	0.638 in	16.2 mm	Lever Roller	2 mm	0.079 "	100 mA	125 V	On-Mom	Quick Connect - 0.110" (2.8mm)		0.178 in	55 gf	15000000 Cycles	SPDT	100000 Cycles	120 °C	-40 C	Chassis Mount	0.6 mm	0.025 in	4.5 mm
