P70-20100 Series
Manufacturer: Harwin Inc.
Beta
⌘K

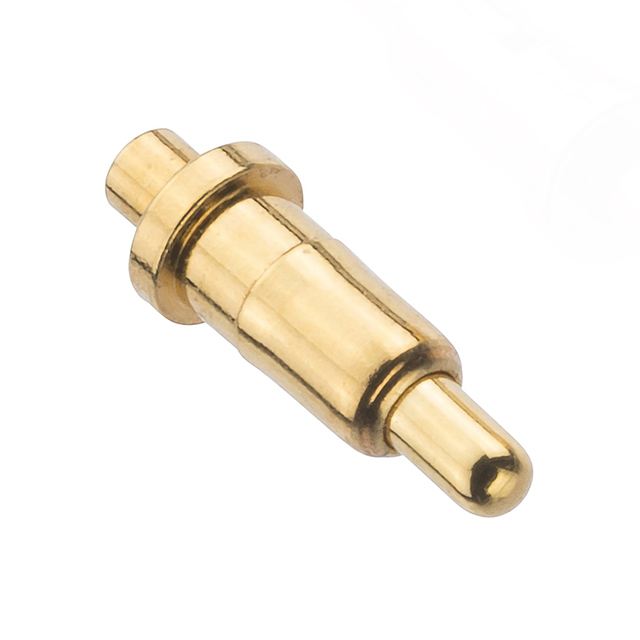

CONTACT, SPRING LOADED PIN, POINT, 2 A, 5 MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Mounting Type | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Contact Finish | Mating Cycles | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height [Min] | Minimum Working Height [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | Sleeve & Plunger (Pogo Pins) | Through Hole | 2 A | 0.157 in | 4 mm | Gold | 10000 | 2.4 mm | 0.094 in | 0.035 in | 0.9 mm | Brass | 16 µin | 0.41 µm | 134.6 gf | 0.165 in | 4.2 mm | 0.152 in | 3.85 mm |
