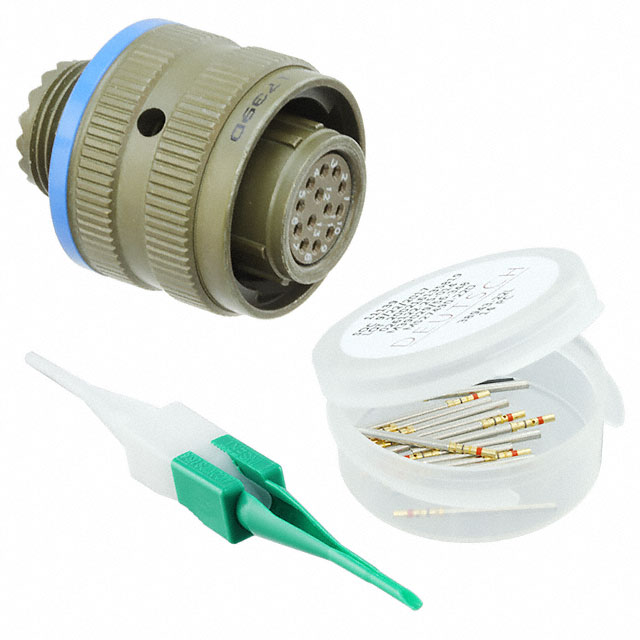

MS27467T11B Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PLUG ASSY
| Part | Qualification | Applications | Insert Material | Current Rating (Amps) | Shell Finish | Contact Finish - Mating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ingress Protection | Primary Material | Fastening Type | Orientation | Shell Material | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Grade | Contact Material | Termination | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Shielding | Color | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | MIL-DTL-38999 Series I | Automotive Aviation Military | Plastic | 7.5 A | Olive Drab Cadmium | Gold | 6 | -65 ░C | 175 °C | Free Hanging (In-Line) | Environment Resistant | Metal | Bayonet Lock | N (Normal) | Aluminum | Plug Female Sockets | 50 µin | 1.27 µm | Military | Copper Alloy | Crimp | 11 | 98 | Shielded | Olive Drab | ||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series I | Automotive Aviation Military | Plastic | 5 A | Olive Drab Cadmium | Gold | 13 | -65 ░C | 175 °C | Free Hanging (In-Line) | Environment Resistant | Metal | Bayonet Lock | N (Normal) | Aluminum | Plug Female Sockets | 50 µin | 1.27 µm | Military | Copper Alloy | Crimp | Shielded | Olive Drab | 35 | 11 |
