G6J-2F Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

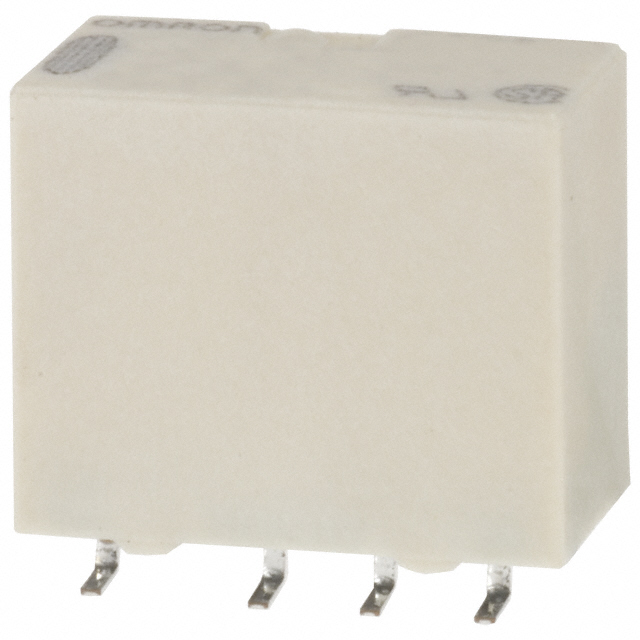

RELAY TELECOM DPDT 1A 3V

Part	Termination Style	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Mounting Type	Coil Resistance	Switching Voltage	Coil Current	Relay Type	Load - Max Switching	Contact Rating (Current)	Release Time	Contact Material	Coil Type	Operate Time	Contact Form	Must Operate Voltage	Coil Voltage
Omron Electronics Inc-EMC Div G6J-2FS-Y DC3	Gull Wing	0.3 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	62.5 Ohms	110 VDC 125 VAC	48 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	2.25 VDC
Omron Electronics Inc-EMC Div G6J-2FL-Y DC3	Gull Wing	0.3 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	62.5 Ohms	110 VDC 125 VAC	48 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	2.25 VDC
Omron Electronics Inc-EMC Div G6J-2FS-Y DC4.5	Gull Wing	0.45 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	138 Ohms	110 VDC 125 VAC	32.6 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	3.38 VDC	4.5 VDC
Omron Electronics Inc-EMC Div G6J-2FL-Y-TR DC12	Gull Wing	1.2 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	977 Ohms	110 VDC 125 VAC	12.3 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	9 VDC	12 VDC
Omron Electronics Inc-EMC Div G6J-2FS-Y DC12	Gull Wing	1.2 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	977 Ohms	110 VDC 125 VAC	12.3 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	9 VDC	12 VDC
Omron Electronics Inc-EMC Div G6J-2FL-Y-TR DC24	Gull Wing	2.4 VDC	85 °C	-40 °C	Sealed - Fully	Surface Mount	2.6 kOhms	110 VDC 125 VAC	9.2 mA	Telecom	110 W 125 VA	1 A	3 ms	Gold (Au) Silver (Ag)	Non Latching	3 ms	DPDT (2 Form C)	18 VDC	24 VDC
