892-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.100

Part	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Termination Rows [custom]	Contact Material	Card Type	Number of Positions/Bay/Row	Pitch	Pitch	Number of Rows [custom]	Gender	Contact Type	Contact Finish	Termination	Mounting Type	Color	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features

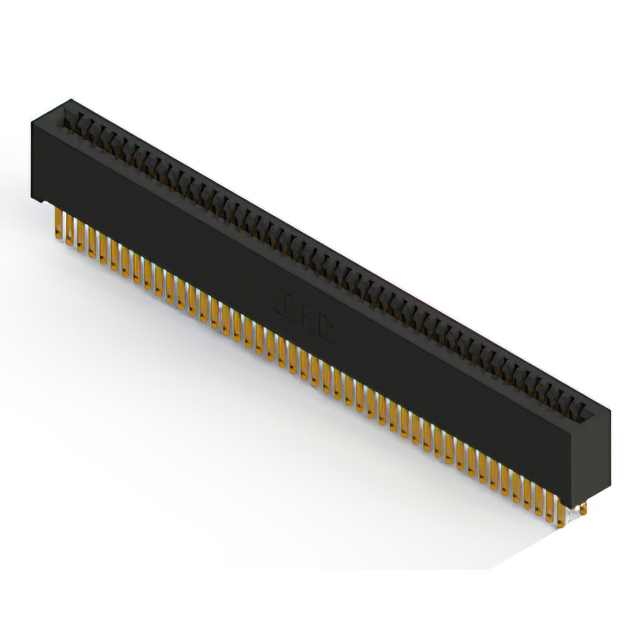

EDAC Inc. 892-092-500-201	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder Eyelet(s)	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual
EDAC Inc. 892-092-500-203	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder Eyelet(s)	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-092-560-203	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Board Edge Straddle Mount	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Card Extender
EDAC Inc. 892-092-500-212	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder Eyelet(s)	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 892-092-520-207	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-092-520-203	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-092-520-204	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 892-092-559-203	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Right Angle Through Hole	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-092-556-203	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Board Edge Straddle Mount	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Card Extender
EDAC Inc. 892-092-560-201	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Copper Alloy	Non Specified - Dual Edge	46	0.1 "	2.54 mm	2	Female	Cantilever	Gold	Solder	Board Edge Straddle Mount	Black	92	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Dual				Card Extender
