RFT-1213 Series
Manufacturer: RF Industries
Beta
⌘K

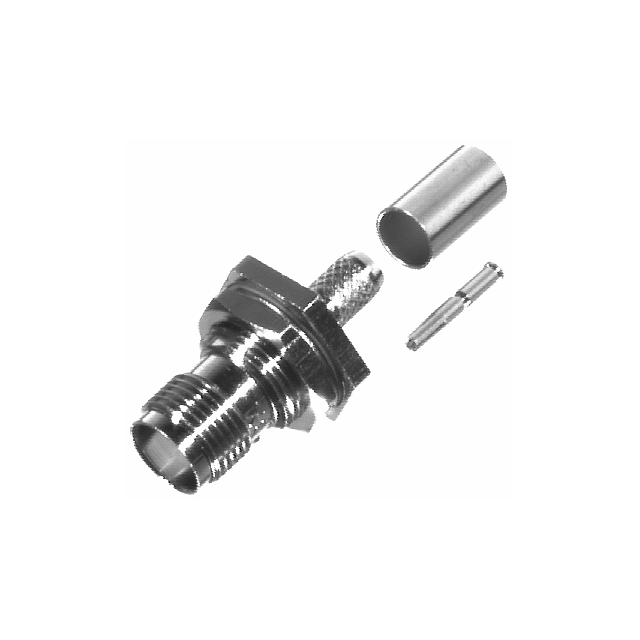

TNC FEMALE BH CRIMP; 50 OHMS
| Part | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Center Contact Plating | Impedance | Mounting Feature | Housing Color | Number of Ports | Shield Termination | Connector Type | Mounting Type | Contact Termination | Frequency - Max [Max] | Connector Style | Fastening Type | Cable Group | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Nickel | Brass | -65 ░C | 165 °C | Polyoxymethylene (POM) Acetal | 500 V | Gold | 50 Ohms | Bulkhead - Front Side Nut | Silver | 1 | Crimp | Female Socket Jack | Panel Mount | Crimp | 7 GHz | TNC | Threaded | Belden 9258 LMR-240 RG-8X | Brass |
