179973 Series

Catalog

CONN QC RCPT 18-22AWG 0.250

Part	Gender	Contact Material	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Termination	Tab Thickness	Tab Thickness	Contact Finish	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Tab Width	Tab Width	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]

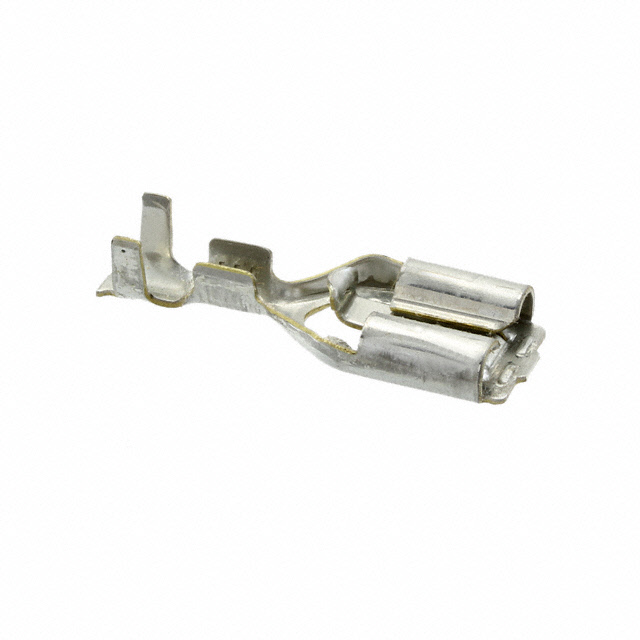

TE Connectivity Raychem Cable Protection 179973-1	Female	Brass	0.835 in	21.21 mm	0.248 in	6.3 mm	Crimp	0.032 in	0.81 mm	Tin	Non-Insulated	22 AWG	17.5 AWG	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.059 in	1.5 mm	0.122 "	3.1 mm
