R2S133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

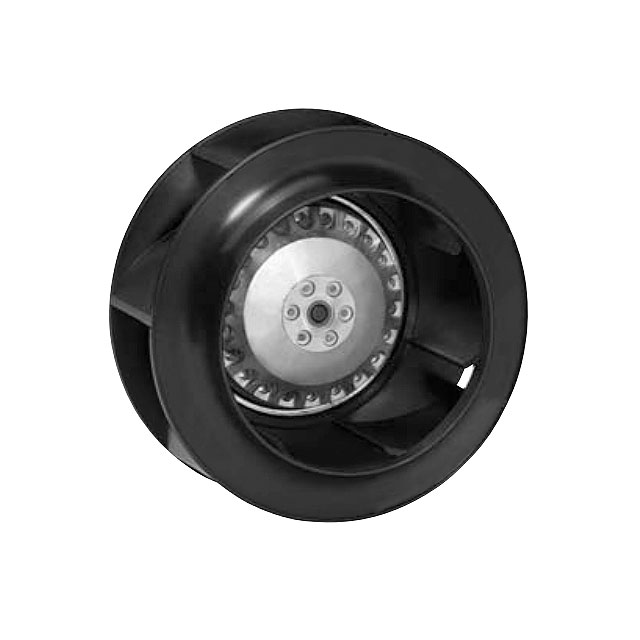

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER, 133MM ROUND, 115VAC, 60HZ, 188CFM
| Part | Current Rating (Amps) | Material - Blade | Termination | Bearing Type | Width [x] | Power (Watts) | Size / Dimension [diameter] | Size / Dimension | Approval Agency | Voltage - Rated | Ingress Protection | Features | Fan Type | RPM | Operating Temperature | Operating Temperature | Noise | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 0.41 A | Polyamide (PA) Nylon | 2 Wire Leads with Splice Terminals | Ball | 91 mm | 34 W | 133.4 mm | Round | CE CSA UL | 115 VAC | IP22 | Thermal Overload Protector (TOP) | Motorized Impellers | 3150 RPM | |||||||
 ebm-papst Inc. | Nylon 6 Polyamide (PA6) | 2 Wire Leads | Ball | 91 mm | 45 W | 133.4 mm | Round | CSA UL VDE | 230 VAC | Motorized Impellers | 131 °F | 55 °C | 60 dB(A) | 188 CFM | 5.26 m³/min | ||||||
 ebm-papst Inc. | 3 Wire Leads with Splice Terminals | Ball | 91 mm | 34 W | 133.4 mm | Round | CCC CE EAC | 230 VAC | IP22 | Thermal Overload Protector (TOP) | Motorized Impellers | 3200 RPM | 188 CFM | 5.26 m³/min | -25 °C | 60 °C |
