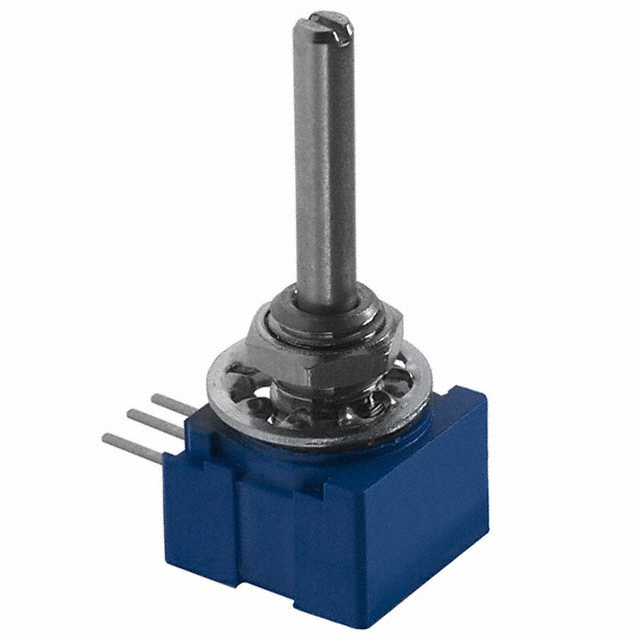

51CAD Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CERMET POT 100K OHM 10% 1W 1(ELEC)/1(MECH)TURN 3.18MM (31.12 X 12.5 X 13.25MM) PIN PANEL MOUNT/THROUGH HOLE
| Part | Actuator Length [x] | Actuator Length [x] | Built in Switch | Mounting Type | Bushing Thread | Number of Gangs | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Power (Watts) | Taper | Actuator Type | Features | Resistive Material | Resistance (Ohms) | Temperature Coefficient | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Tolerance | Number of Turns | Rotation | Termination Style | Adjustment Type | Power (Watts) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.875 in | 22.23 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 1 W | Linear | Slotted | Sealed | Cermet | 100k | 150 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 10 % | 1 | 290 ° | PC Pins | Side Adjustment | ||
Bourns Inc. | 0.75 in | 19.05 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 1 W | Linear | Slotted | Sealed | Cermet | 1k | 150 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 10 % | 1 | 290 ° | PC Pins | Side Adjustment | ||
 Bourns Inc. | 0.875 in | 22.23 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 1 W | Linear | Slotted | Sealed | Cermet | 1k | 150 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 10 % | 1 | 290 ° | PC Pins | Side Adjustment | ||
Bourns Inc. | 0.75 in | 19.05 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 0.5 W | Linear | Slotted | Sealed | Conductive Plastic | 10k | 1000 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 20 % | 1 | 290 ° | PC Pins | Side Adjustment | 0.5 W | |
Bourns Inc. | 0.75 in | 19.05 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 1 W | Linear | Slotted | Sealed | Cermet | 10k | 150 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 10 % | 1 | 290 ° | PC Pins | Side Adjustment | ||
 Bourns Inc. | 0.875 in | 22.23 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 0.25 W | Logarithmic | Slotted | Sealed | Conductive Plastic | 10k | 1000 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 20 % | 1 | 290 ° | PC Pins | Side Adjustment | 0.25 W | |
Bourns Inc. | 0.5 in | 12.7 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 0.25 W | Logarithmic | Slotted | Sealed | Conductive Plastic | 100k | 1000 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 20 % | 1 | 290 ° | PC Pins | Side Adjustment | 0.25 W | |
Bourns Inc. | 0.875 in | 22.23 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 1 W | Linear | Slotted | Sealed | Cermet | 100k | 150 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 10 % | 1 | 290 ° | PC Pins | Side Adjustment | ||
 Bourns Inc. | 0.75 in | 19.05 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 0.5 W | Linear | Slotted | Sealed | Conductive Plastic | 1000 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 20 % | 1 | 290 ° | PC Pins | Side Adjustment | 0.5 W | 5 kOhms | |
Bourns Inc. | 0.875 in | 22.23 mm | None | Panel Mount | 1/4-32 | 1 | 3.18 mm | 0.125 in | 0.25 W | Logarithmic | Slotted | Sealed | Conductive Plastic | 10k | 1000 ppm/°C | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 20 % | 1 | 290 ° | PC Pins | Side Adjustment | 0.25 W |
