2706-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

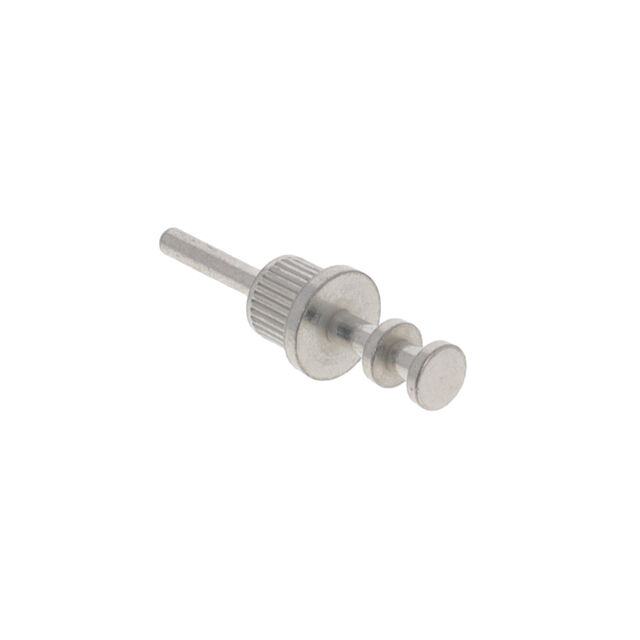

TERM TURRET PIN L=5.56MM
| Part | Terminal Type | Insulation | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Mounting Type | Number of Turrets | Length - Above Board [x] | Length - Above Board [x] | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | Double End Pin | Non-Insulated | 0.062 in | 1.57 mm | 0.531 " | 13.5 mm | 0.093 in 0.094 in | 2.36 mm 2.39 mm | 200 Áin | 5.08 Ám | Knurled Swage | 0.12 in | 3.05 mm | 0.312 in | 7.92 mm | Tin-Lead | Through Hole | Double | 0.219 " | 5.56 mm | Brass Alloy | 3.96 mm | 0.156 in |
Mill-Max Manufacturing Corp. | Double End Pin | Non-Insulated | 0.062 in | 1.57 mm | 0.531 " | 13.5 mm | 0.093 in 0.094 in | 2.36 mm 2.39 mm | 300 µin | 7.62 µm | Knurled Swage | 0.12 in | 3.05 mm | 0.312 in | 7.92 mm | Tin-Lead | Through Hole | Double | 0.219 " | 5.56 mm | Brass Alloy | 3.96 mm | 0.156 in |
 Mill-Max Manufacturing Corp. | Double End Pin | Non-Insulated | 0.062 in | 1.57 mm | 0.531 " | 13.5 mm | 0.093 in 0.094 in | 2.36 mm 2.39 mm | 200 Áin | 5.08 Ám | Knurled Swage | 0.12 in | 3.05 mm | 0.312 in | 7.92 mm | Tin | Through Hole | Double | 0.219 " | 5.56 mm | Brass Alloy | 3.96 mm | 0.156 in |
