2007821 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

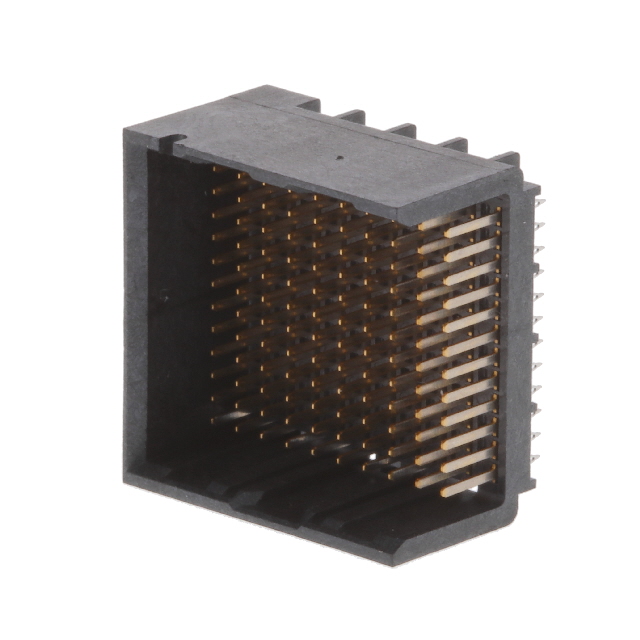

CONN HEADER IMPACT 120POS PCB
| Part | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Material Flammability Rating | Mounting Type | Number of Positions | Connector Style | Pitch [x] | Pitch [x] | Termination | Connector Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 30 VAC | 0.76 Ám | 30 Áin | All | UL94 V-0 | Through Hole | 120 | Impact | 0.075 in | 1.91 mm | Press-Fit | Header Male Pins | 12 | 85 °C | -55 °C | Gold | Black | 10 |
