89761 Series

Manufacturer: Molex

Catalog

CBL ASSY SMA-MMCX JACK-PLUG 18"

Part	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	Style	Length	Length	Cable Impedance	Features	1st Connector Mounting Type	Cable Type	Color	Overall Impedance	2nd Connector	1st Contact Gender	1st Connector Mounting Feature	Length [x]	Length [x]
Molex 0897616802	Free Hanging (In-Line)	Male	SMA Jack	SMA to MMCX	457.2 mm	18 in	50 Ohms	Shielded	Panel Mount	RG-178	Copper	50 Ohms	MMCX Plug	Female	Bulkhead - Front Side Nut

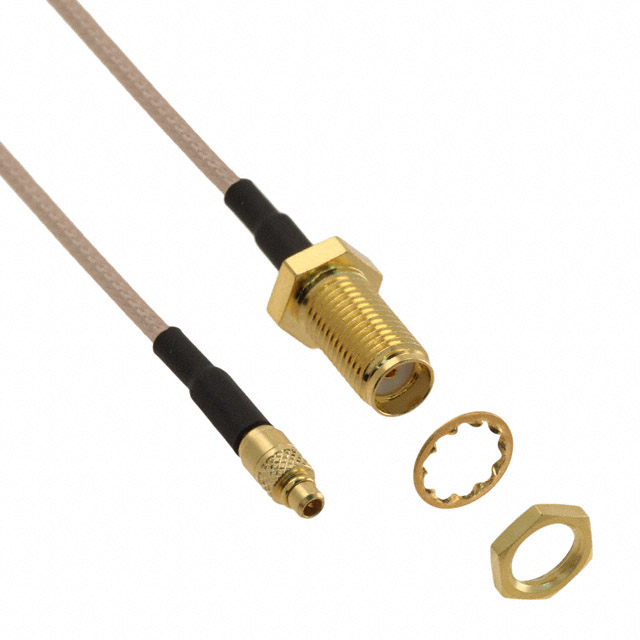

Molex 0897616800	Free Hanging (In-Line)	Male	SMA Jack	SMA to MMCX			50 Ohms	Shielded	Panel Mount	RG-178	Copper	50 Ohms	MMCX Plug	Female	Bulkhead - Front Side Nut	152.4 mm	6 "
Molex 0897616772	Free Hanging (In-Line)	Male	SMA Jack	SMA to MMCX	457.2 mm	18 in	50 Ohms	Shielded	Panel Mount	RG-316	Copper	50 Ohms	MCX Plug Right Angle	Female	Bulkhead - Front Side Nut
Molex 0897616801	Free Hanging (In-Line)	Male	SMA Jack	SMA to MMCX			50 Ohms	Shielded	Panel Mount	RG-178	Copper	50 Ohms	MMCX Plug	Female	Bulkhead - Front Side Nut	304.8 mm	12 in
Molex 0897616791	Free Hanging (In-Line)	Male	MMCX Plug Right Angle	MMCX to MMCX			50 Ohms		Free Hanging (In-Line)	RG-316	Copper	50 Ohms	MMCX Plug Right Angle	Male		304.8 mm	12 in
Molex 0897616760	Free Hanging (In-Line)	Male	MCX Plug	MCX to MCX			50 Ohms		Free Hanging (In-Line)	RG-316	Copper	50 Ohms	MCX Plug	Male		152.4 mm	6 "
Molex 0897616821	Free Hanging (In-Line)	Male	SMA Jack	SMA to MMCX			50 Ohms	Shielded	Panel Mount	RG-316	Copper	50 Ohms	MMCX Plug Right Angle	Female	Bulkhead - Front Side Nut	304.8 mm	12 in
Molex 0897616771	Free Hanging (In-Line)	Male	SMA Jack	SMA to MCX			50 Ohms	Shielded	Panel Mount	RG-316	Copper	50 Ohms	MCX Plug Right Angle	Female	Bulkhead - Front Side Nut	304.8 mm	12 in
Molex 0897616134	Free Hanging (In-Line)	Male	MCX Plug Right Angle	MCX to MCX			50 Ohms		Free Hanging (In-Line)	RG-316	Copper	50 Ohms	MCX Plug Right Angle	Male		304.8 mm	12 in

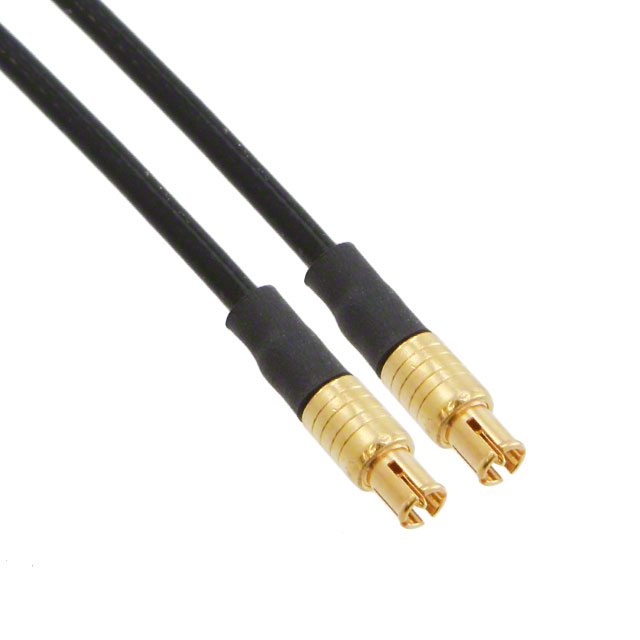

Molex 0897611760	Free Hanging (In-Line)	Male	SSMCX Plug	SSMCX to SSMCX	150 mm	5.906 in			Free Hanging (In-Line)	1.32mm OD Coaxial Cable	Black	50 Ohms	SSMCX Plug	Male
