RA1-2A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Mechanical Life (Cycles) | Electrical Life (Cycles) | Voltage Rating - DC | Current Rating | Voltage Rating - AC | Color - Actuator/Cap | Actuator Type | Mounting Type | Actuator Marking | Circuit | Operating Temperature (Max) | Operating Temperature (Min) | Panel Cutout Diameter | Panel Cutout Shape | Quick Connect Size (0.187") | Termination Style | Approval Agency | Switch Function | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

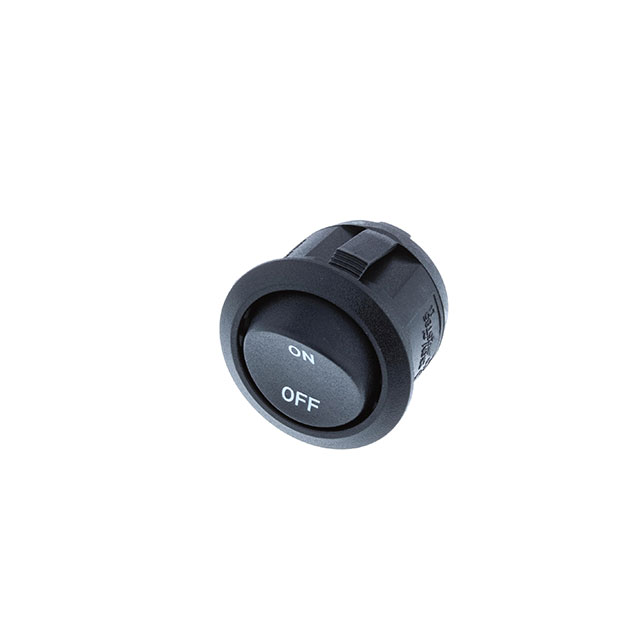

 Switch Components | 10000 Cycles | 6000 Cycles | 28 V | 10 A 16 A | 125 V | Black | Round | Panel Mount Snap-In | ON OFF Vertical | DPST | 85 °C | -25 °C | 20.2 mm | Circular | 0.187 in | Quick Connect | cURus ENEC | On-Off | |

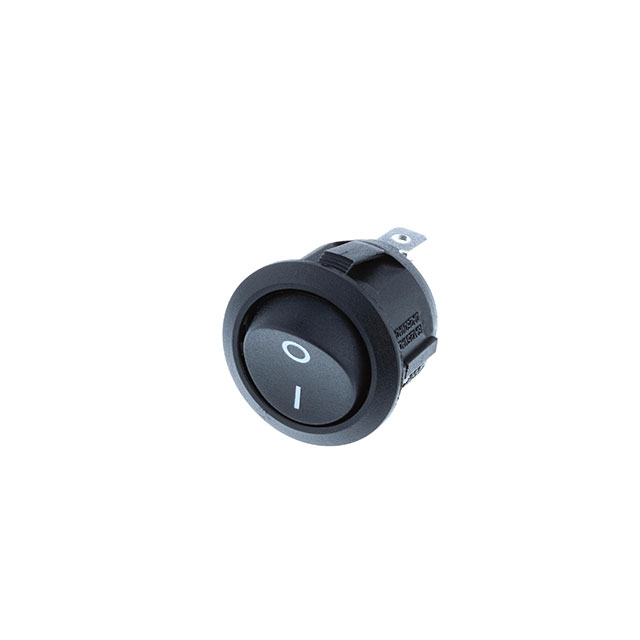

 Switch Components | 10000 Cycles | 6000 Cycles | 28 V | 10 A 16 A | 125 V | Black | Round | Panel Mount Snap-In | O | DPST | 85 °C | -25 °C | 20.2 mm | Circular | 0.187 in | Quick Connect | cURus ENEC | On-Off | |

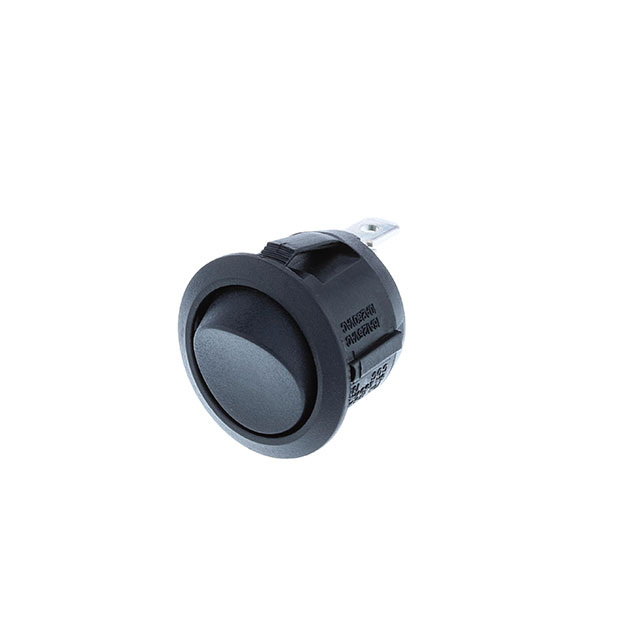

 Switch Components | 10000 Cycles | 6000 Cycles | 28 V | 10 A 16 A | 125 V | Black | Round | Panel Mount Snap-In | No Marking | DPST | 85 °C | -25 °C | 20.2 mm | Circular | 0.187 in | Quick Connect | cURus ENEC | On-Off | |
Switch Components | 10 A | Black | Round | Panel Mount Snap-In | ON OFF Vertical | DPST | 85 °C | -20 °C | 20.2 mm | Circular | 0.187 in | Quick Connect | cURus ENEC | On-Off | IP40 |
