1393480 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN D-SUB PLUG 25POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Contact Finish | Current Rating (Amps) | Number of Positions | Material Flammability Rating | Connector Type | Contact Type | Flange Feature | Number of Rows [custom] | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Features | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | -55 C | 125 °C | Gray | Right Angle Through Hole | D-Sub | B DB | 3 | Solder | Gold | 2.2 A | 25 | UL94 V-0 | Plug Male Pins | Signal | 4-40 Mating Side Female Screwlock | 2 | |||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | -55 C | 125 °C | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 2.2 A | 15 | UL94 V-0 | Plug Male Pins | Signal | Housing/Shell (M3) | 2 | 2 | 0.371 in | 9.43 mm | Board Lock Grounding Indents | |||||||

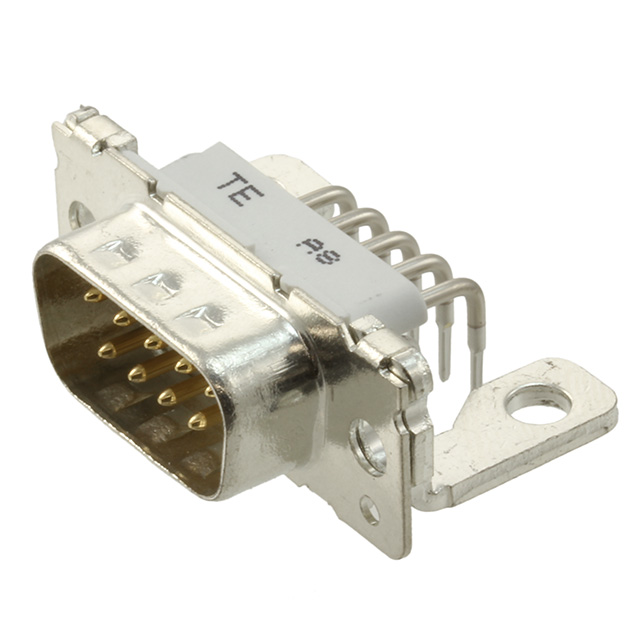

 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 2.2 A | 9 | Plug Male Pins | Signal | Housing/Shell (Unthreaded) | 2 | Grounding Indents | 20 µin | 0.51 µm | 1 | DE E | ||||||||

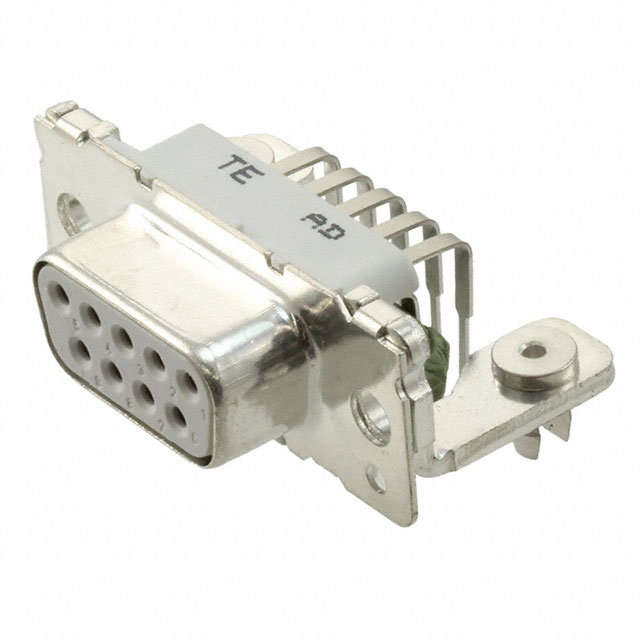

 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | -55 C | 125 °C | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 2.2 A | 9 | UL94 V-0 | Receptacle Female Sockets | Signal | Housing/Shell (Unthreaded) | 2 | 0.371 in | 9.43 mm | Board Lock | 1 | DE E | ||||||
TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 15 | UL94 V-0 | Plug Male Pins | Signal | Housing/Shell | 2 | 2 | 0.371 in | 9.43 mm | Grounding Indents Mounting Brackets | 4-40 | |||||||||
TE Connectivity AMP Connectors | Right Angle Through Hole | D-Sub | Solder | 15 | Plug Male Pins | Signal | Housing/Shell (M3) | 2 | 2 | Grounding Indents | |||||||||||||||||
TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | Gray | Right Angle Through Hole | D-Sub | B DB | 3 | Solder | Gold | 25 | UL94 V-0 | Receptacle Female Sockets | Signal | Housing/Shell (Unthreaded) | 2 | 0.371 in | 9.43 mm | ||||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | -55 C | 125 °C | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 2.2 A | 9 | UL94 V-0 | Receptacle Female Sockets | Signal | Housing/Shell | 2 | 0.371 in | 9.43 mm | Board Lock | 1 | DE E | 4-40 | |||||
TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | Gray | Right Angle Through Hole | D-Sub | Solder | Gold | 15 | UL94 V-0 | Receptacle Female Sockets | Signal | Housing/Shell | 2 | 2 | 0.371 in | 9.43 mm | 4-40 | ||||||||||
TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | Gray | Right Angle Through Hole | D-Sub | B DB | 3 | Solder | Gold | 25 | UL94 V-0 | Plug Male Pins | Signal | Housing/Shell | 2 | 0.371 in | 9.43 mm | Grounding Indents Mounting Brackets | 4-40 |
