C44PLG Series

Manufacturer: KEMET

Catalog

CAP FILM 500UF 10% 700VDC RADIAL

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Termination	Package / Case	Voltage Rating - AC	Capacitance	Lead Spacing	Lead Spacing	Features	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)
KEMET C44PLGR6500RASK	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Stud Mount	10 %	Threaded Male	Can Radial	330 V	500 µF	1.378 "	35 mm	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	2.953 in	75 mm	249 mm	9.803 "	700 VDC
KEMET C44PLGR6500RBSK	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Stud Mount	10 %	Threaded Male	Can Radial	330 V	500 µF	1.378 "	35 mm	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	3.346 "	85 mm	199 mm	7.835 in	700 VDC
KEMET C44PLGR6600RBSK	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Stud Mount	5 %	Threaded Male	Can Radial	330 V	600 µF		2.953 in	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	3.346 "	85 mm			500 V	75 mm	272 mm	10.709 "
KEMET C44PLGR6400RASJ	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Stud Mount	5 %	Threaded Male	Can Radial	330 V	400 µF	1.378 "	35 mm	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	2.953 in	75 mm	249 mm	9.803 "	700 VDC
KEMET C44PLGR6200ZASJ	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Mount	5 %	Threaded Male	Can Radial	330 V		1.102 in	28 mm	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	2.559 in	65 mm			700 VDC		149 mm	5.866 in	2.8 mOhms

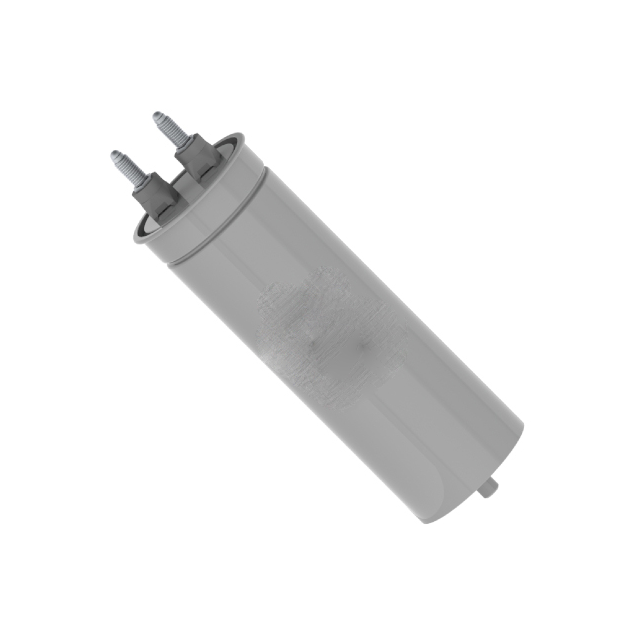

KEMET C44PLGR6100AASJ	Polypropylene (PP) Metallized	-25 °C	70 °C	Chassis Mount	5 %	Threaded Male	Can Radial	330 V	100 µF	1.102 in	28 mm	Long Life	Commutation EMI RFI Suppression Power Factor Correction (PFC)	2.559 in	65 mm			700 VDC		119 mm	4.685 in	3 mOhm
