G3VM-35 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SSR RELAY SPST-NC 100MA 0-350V

Part	Load Current	Termination Style	Mounting Type	Circuit	Voltage - Input	On-State Resistance (Max) [Max]	Voltage - Load [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case [x]

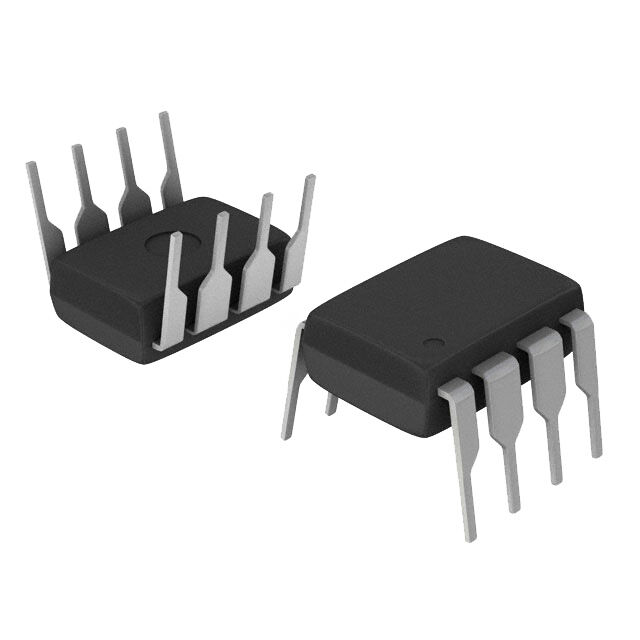

Omron Electronics Inc-EMC Div G3VM-354C1	100 mA	PC Pin	Through Hole	SPST-NC (1 Form B) x 2	1.15 VDC	35 Ohm	350 V	0.3 in	8-DIP	7.62 mm	85 °C	-40 °C	AC DC	8-DIP

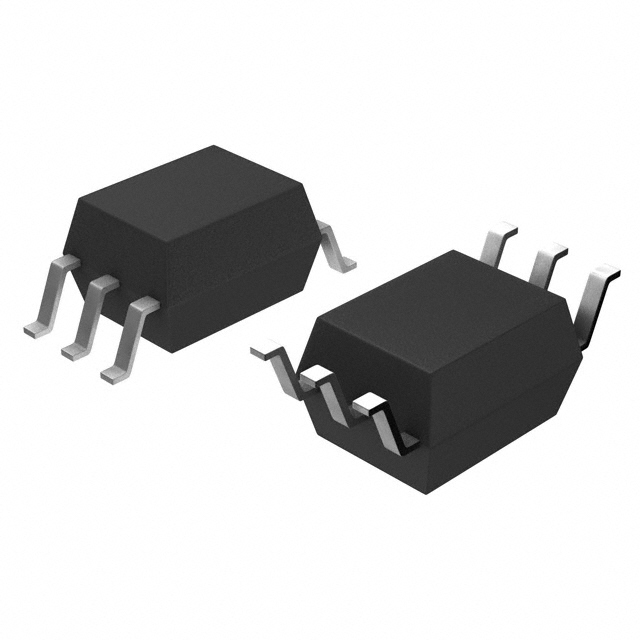

Omron Electronics Inc-EMC Div G3VM-353H1(TR)	90 mA	Gull Wing	Surface Mount	SPST-NC (1 Form B)	1.15 VDC	25 Ohms	350 V		6-SOP		85 °C	-40 °C	AC DC	6-SOP	0.173 in 4.4 mm

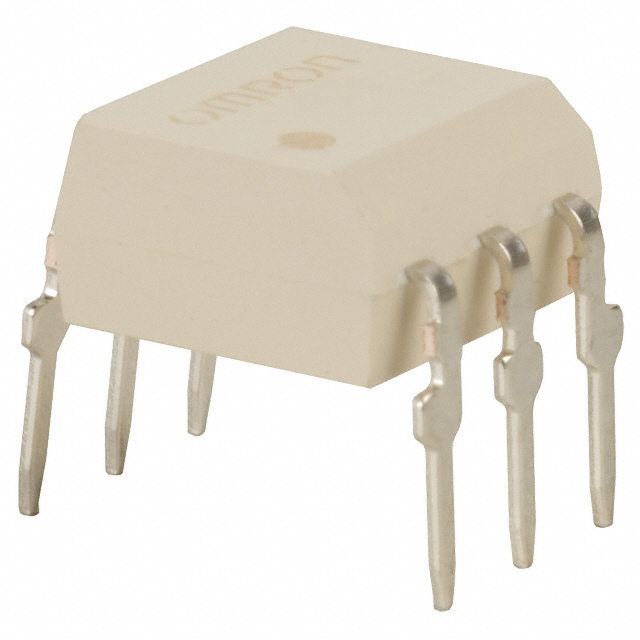

Omron Electronics Inc-EMC Div G3VM-351B	120 mA	PC Pin	Through Hole		1.15 VDC	50 Ohm	350 V	7.62 mm	6-DIP		85 °C	-40 °C	AC DC	6-DIP	0.3 in
Omron Electronics Inc-EMC Div G3VM-353E	150 mA	Gull Wing	Surface Mount	SPST-NC (1 Form B)	1.15 VDC	25 Ohms	350 V	0.3 in	6-SMD	7.62 mm	85 °C	-40 °C	AC DC	6-SMD
Omron Electronics Inc-EMC Div G3VM-355JR	120 mA	Gull Wing	Surface Mount	SPST-NC SPST-NO	1.15 VDC	25 Ohms	350 V		8-SOP		85 °C	-40 °C	AC DC	8-SOP		4.4 mm	0.173 in

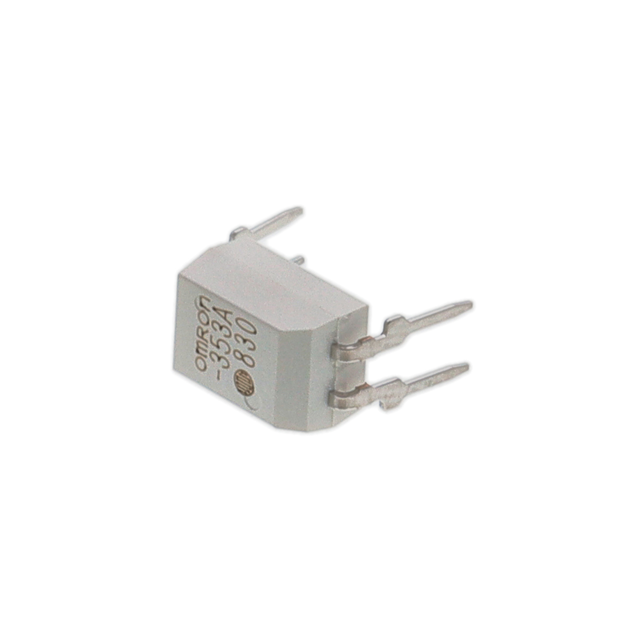

Omron Electronics Inc-EMC Div G3VM-353A	150 mA	PC Pin	Through Hole	SPST-NC (1 Form B)	1.15 VDC	25 Ohms	350 V		4-DIP (0.300" 7.62mm)		85 °C	-40 °C	AC DC	4-DIP
Omron Electronics Inc-EMC Div G3VM-353D1	100 mA	Gull Wing	Surface Mount	SPST-NC (1 Form B)	1.15 VDC	25 Ohms	350 V		4-SMD		85 °C	-40 °C	AC DC	4-SMT	0.3 in 7.62 mm
Omron Electronics Inc-EMC Div G3VM-355CR	120 mA	PC Pin	Through Hole	SPST-NC SPST-NO	1.15 VDC	25 Ohms	350 V	0.3 in	8-DIP	7.62 mm	85 °C	-40 °C	AC DC	8-DIP
Omron Electronics Inc-EMC Div G3VM-353E(TR)	150 mA	Gull Wing	Surface Mount	SPST-NC (1 Form B)	1.15 VDC	25 Ohms	350 V	0.3 in	6-SMD	7.62 mm	85 °C	-40 °C	AC DC	6-SMD
Omron Electronics Inc-EMC Div G3VM-351D	120 mA	Gull Wing	Surface Mount		1.15 VDC	50 Ohm	350 V		4-SMD		85 °C	-40 °C	AC DC	4-SMD	0.3 in 7.62 mm
