10TPB Series

Catalog

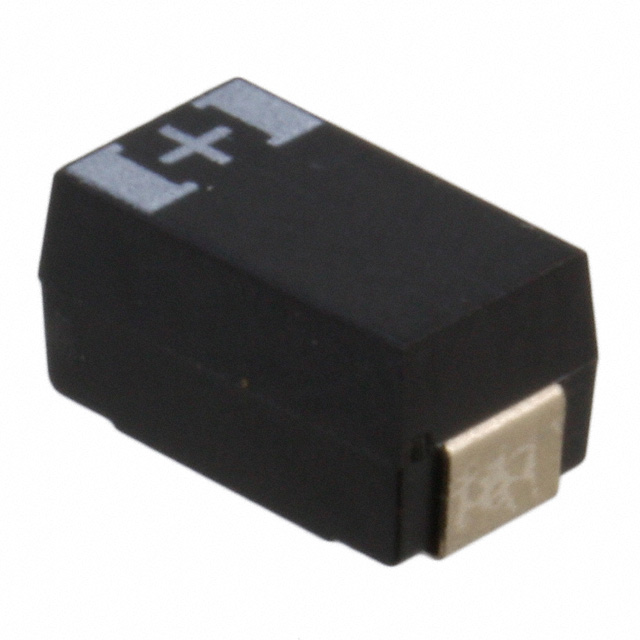

TANTALUM POLYMER CAPACITOR, 150 ΜF, ± 20%, 10 V, D3L, 0.04 OHM, 2917 [7343 METRIC]

Part	Capacitance	Voltage - Rated	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Features	ESR (Equivalent Series Resistance)	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Electronic Components 10TPB150ML	150 µF	10 V	2917 (7343 Metric)	0.118 "	3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	General Purpose	40 mOhm	20 %	-55 C	105 ░C	Molded	D3L
Panasonic Electronic Components 10TPB47M	47 µF	10 V	1411			0.11 "	3.5 mm	0.138 in	2.8 mm	Surface Mount	General Purpose	70 mOhm	20 %	-55 C	105 ░C	Molded	B2	0.079 in	2 mm	3528 Metric
Panasonic Electronic Components 10TPB220M	220 µF	10 V	2917 (7343 Metric)			0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	General Purpose	40 mOhm	20 %	-55 C	105 ░C	Molded	D4				4 mm	0.157 in
Panasonic Electronic Components 10TPB330M	330 µF	10 V	2917 (7343 Metric)			0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	General Purpose	35 mOhm	20 %	-55 C	105 ░C	Molded	D4				4 mm	0.157 in
Panasonic Electronic Components 10TPB220ML	220 µF	10 V	2917 (7343 Metric)	0.118 "	3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	General Purpose	40 mOhm	20 %	-55 C	105 ░C	Molded	D3L
