IMSA-116 Series

Catalog

CONN FFC VERT 45POS 0.5MM SMD

Part	Mounting Type	FFC, FCB Thickness	Features	Height Above Board	Contact Finish	Contact Material	Termination	Number of Positions	Pitch	Flat Flex Type	Connector/Contact Type	Material Flammability Rating	Housing Material	Cable End Type	Voltage Rating	Housing Color	Current Rating	Contact Finish Thickness
IRISO USA Inc. IMSA-11600S-45A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	45	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin
IRISO USA Inc. IMSA-11600S-35B-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	35	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

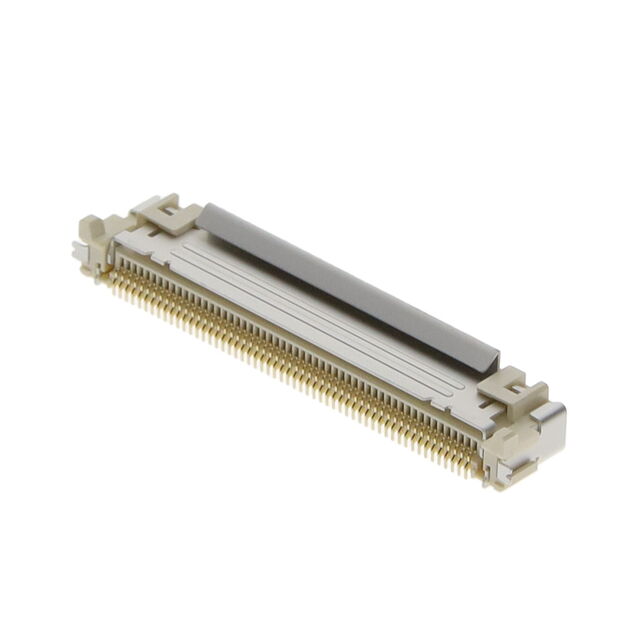

IRISO USA Inc. IMSA-11600S-55A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	55	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

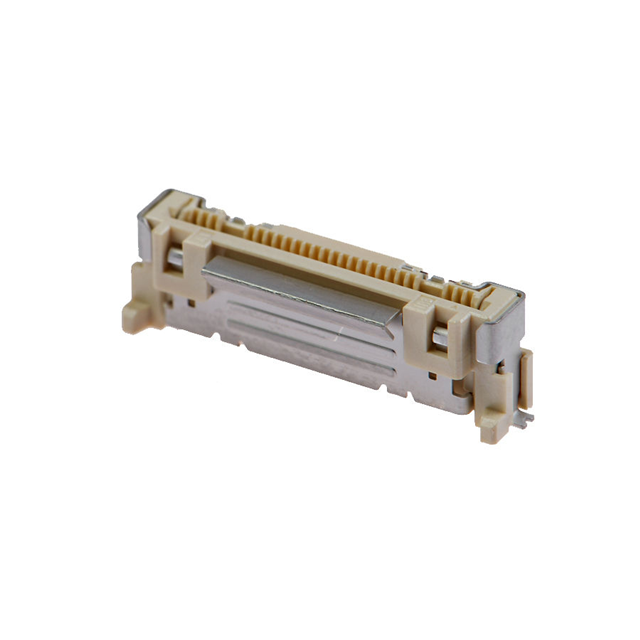

IRISO USA Inc. IMSA-11600S-30B-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	30	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

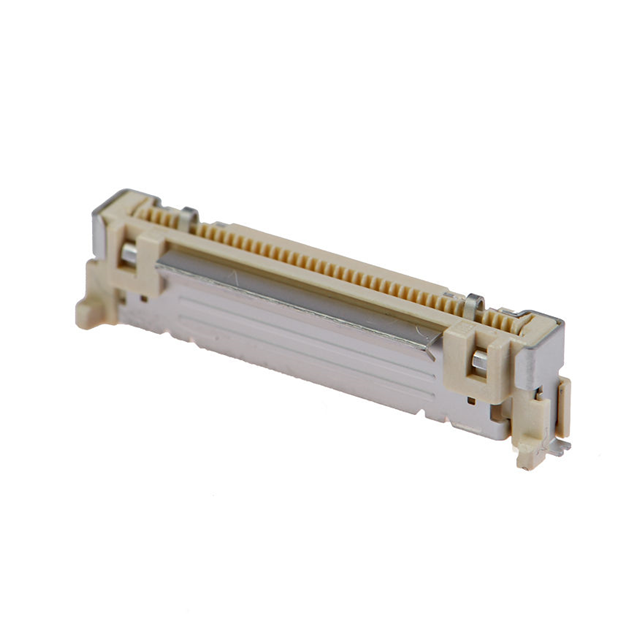

IRISO USA Inc. IMSA-11600S-40A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	40	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

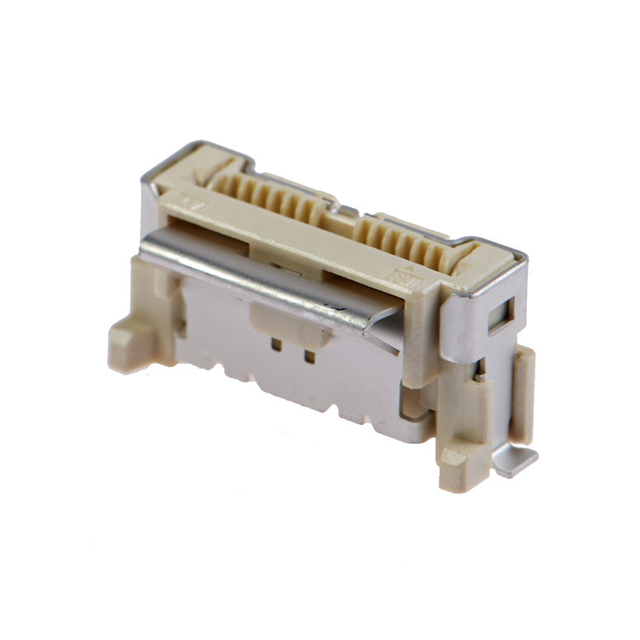

IRISO USA Inc. IMSA-11600S-15D-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	15	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

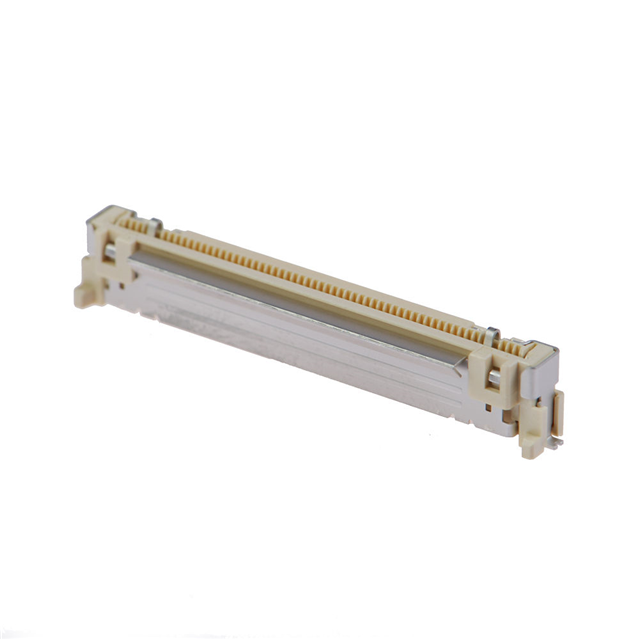

IRISO USA Inc. IMSA-11600S-60A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	60	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin
IRISO USA Inc. IMSA-11600S-20A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	20	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

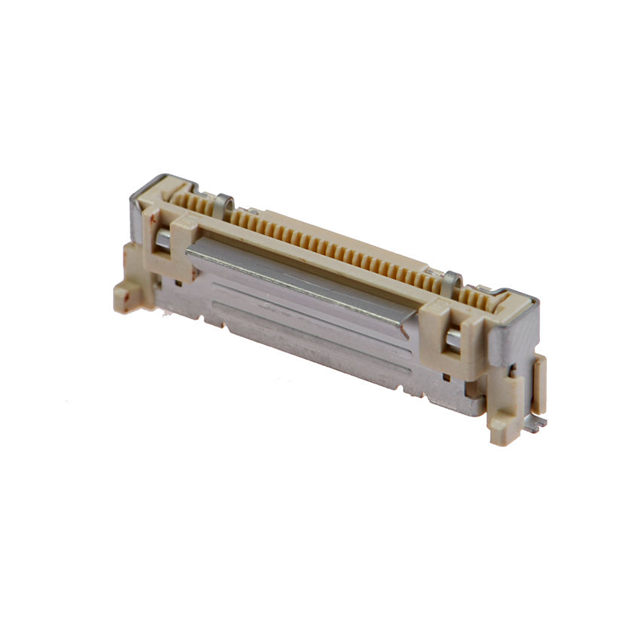

IRISO USA Inc. IMSA-11600S-35A-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	35	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin

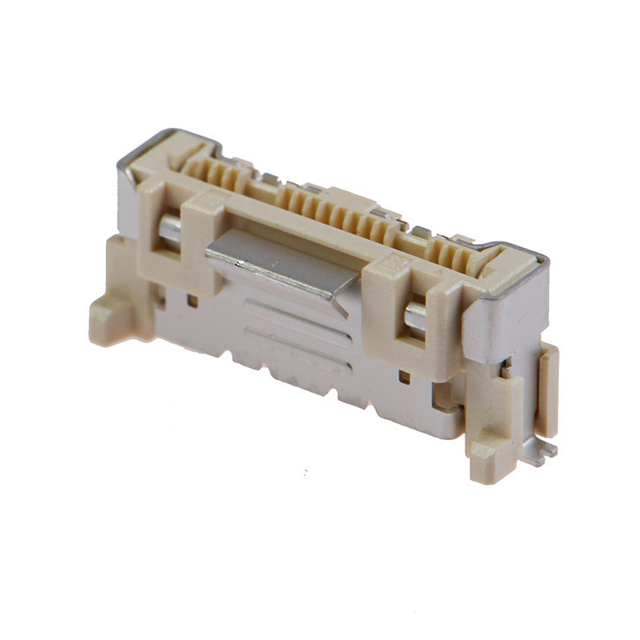

IRISO USA Inc. IMSA-11600S-20B-GFN4	Surface Mount	0.3 mm	Solder Retention	0.236 in	Gold	Copper Alloy	Solder	20	0.02 in	FFC FPC	1 Sided Contacts Vertical	UL94 V-0	LCP Liquid Crystal Polymer	Notched	50 V	Natural	0.5 A	3.94 µin
