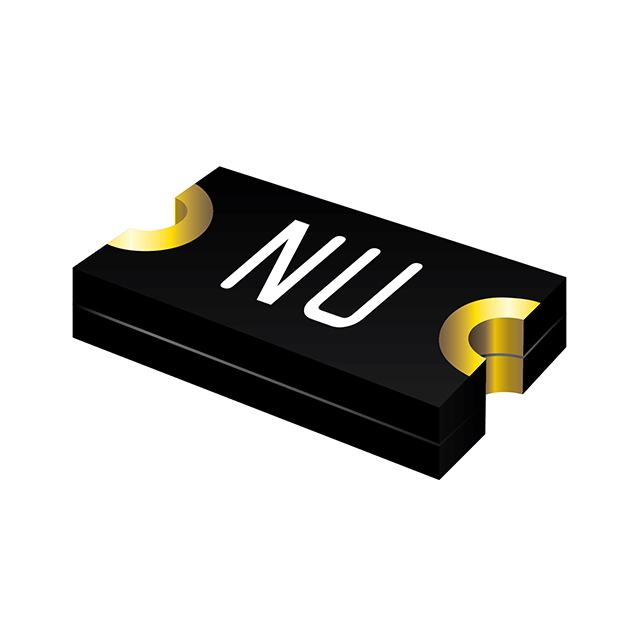

MF-NSML Series
Manufacturer: Bourns Inc.
Beta
⌘K

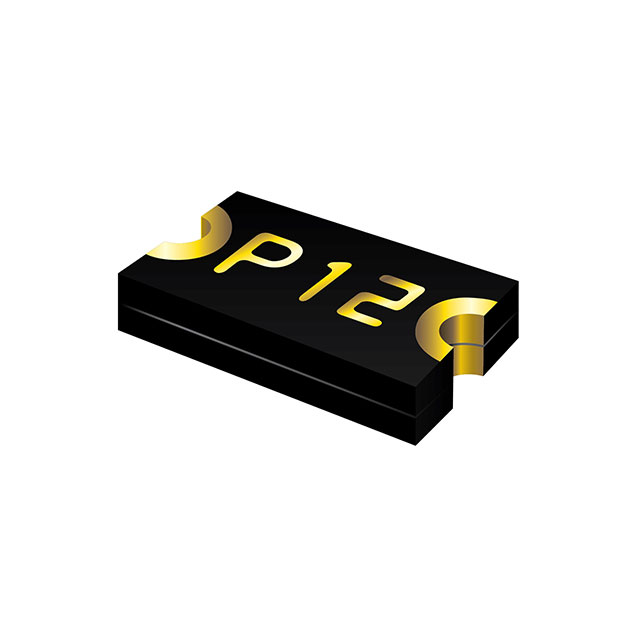

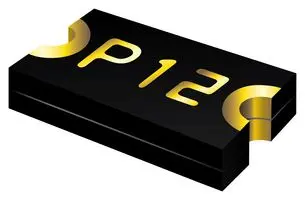

PTC RESET FUSE 6V 3.5A 1206
| Part | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Trip (It) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Current - Hold (Ih) (Max) [Max] | Thickness (Max) | Thickness (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Mounting Type | Resistance - Post Trip (R1) (Max) [Max] | Voltage - Max [Max] | Time to Trip | Current - Max [Max] | Thickness (Max) [Max] | Current - Hold (Ih) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 7 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 3.5 A | 0.6 mm | 0.024 in | 2 mOhms | Surface Mount | 18 mOhms | 6 V | 5 s | 50 A | ||
Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 5.2 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 2.6 A | 0.6 mm | 0.024 in | 3 mOhms | Surface Mount | 26 mOhms | 6 V | 4 s | 50 A | ||
 Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 3.5 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 1.75 A | 0.028 in | 6 mOhms | Surface Mount | 50 mOhms | 12 V | 5 s | 50 A | 0.7 mm | ||
 Bourns Inc. | 85 °C | -40 C | 1206 (3216 Metric) Concave | 6 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 3 A | 0.055 in | 3 mOhms | Surface Mount | 24 mOhms | 6 V | 5 s | 50 A | 1.4 mm | |||
Bourns Inc. | 85 °C | -40 C | 1206 (3216 Metric) Concave | 9 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 0.039 in | 2 mOhms | Surface Mount | 14 mOhms | 6 V | 2 s | 50 A | 1 mm | 4.5 A | |||
Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 6 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 3 A | 0.055 in | 3 mOhms | Surface Mount | 24 mOhms | 12 V | 5 s | 50 A | 1.4 mm | ||
Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 8 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 4 A | 0.6 mm | 0.024 in | 1.5 mOhms | Surface Mount | 14 mOhms | 6 V | 5 s | 50 A | ||
 Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 3.5 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 1.75 A | 0.6 mm | 0.024 in | 5 mOhms | Surface Mount | 30 mOhms | 6 V | 500 ms | 50 A | ||
Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 6 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 3 A | 0.6 mm | 0.024 in | 2.5 mOhms | Surface Mount | 20 mOhms | 6 V | 4 s | 50 A | ||
 Bourns Inc. | cURus TUV | 85 °C | -40 C | 1206 (3216 Metric) Concave | 7 A | 0.063 " | 0.128 in | 3.25 mm | 1.6 mm | Polymeric | 3.5 A | 0.055 in | 2 mOhms | Surface Mount | 22 mOhms | 12 V | 5 s | 50 A | 1.4 mm |
