HTF18L Series
Manufacturer: SICK, Inc.
Beta
⌘K

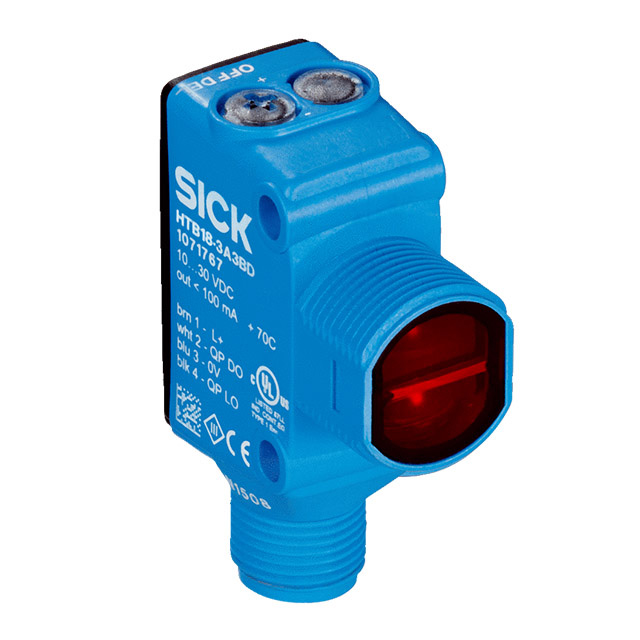

SENSOR PROXIMITY 300MM PNP
| Part | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Adjustment Type | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Response Time | Cable Length | Cable Length | Light Source | Sensing Method | Connection Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | 1.575 " | 11.811 " | 300 mm | 40 mm | Adjustable Potentiometer | PNP | 55 °C | -30 °C | 500 µs | 78.74 " | 2 m | Red Laser Diode (655nm) | Proximity | Cable | 10 VDC | 30 VDC | IP67 |
 SICK, Inc. | 1.575 " | 7.874 " | 200 mm | 40 mm | Adjustable Potentiometer | PNP - Dark-ON/Light-ON - Selectable | 55 °C | -30 ░C | 500 µs | Red Laser Diode (655nm) | Connector M12 4POS | 10 VDC | 30 VDC | IP67 IP69K | |||
SICK, Inc. | 1.575 " | 11.811 " | 300 mm | 40 mm | Adjustable Potentiometer | NPN | 55 °C | -30 °C | 500 µs | 78.74 " | 2 m | Red Laser Diode (655nm) | Proximity | Cable | 10 VDC | 30 VDC | IP67 |
 SICK, Inc. | 1.575 " | 11.811 " | 300 mm | 40 mm | Adjustable Potentiometer | NPN | 55 °C | -30 °C | 500 µs | Red Laser Diode (655nm) | Proximity | Connector M12 | 10 VDC | 30 VDC | IP67 |
