NCV30161 Series

Buck Regulator, Constant Current, for Driving High Power LEDs

Catalog

Buck Regulator, Constant Current, for Driving High Power LEDs

Part	Mounting Type	Grade	Voltage - Supply (Max) [Max]	Applications	Supplier Device Package	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Min) [Min]	Type	Frequency	Topology	Package / Case	Qualification	Number of Outputs	Internal Switch(s)

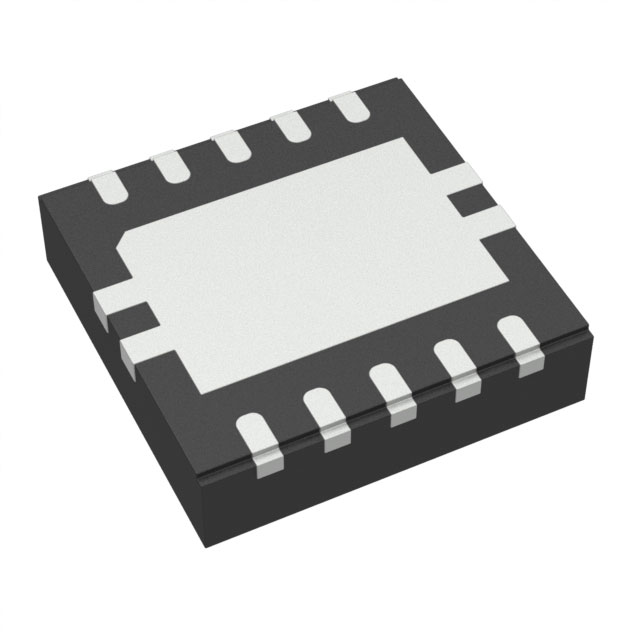

ON Semiconductor NCV30161MNWTXG	Surface Mount	Automotive	40 V	General Purpose Industrial	10-DFNW (3x3)	PWM	-40 °C	125 ¯C	6.3 V	DC DC Controller	2.4 MHz	Step-Down (Buck)	10-VFDFN Exposed Pad	AEC-Q101	1

Catalog

Buck Regulator, Constant Current, for Driving High Power LEDs

Key Features

• Single Pin Brightness and Enable/Disable Control using PWM

• Adjustable LED Current

• Thermal Shutdown Protection

• AECQ100 qualified, PPAP capable

Description

The NCV30161 is a hysteretic step−down, constant−current driver for high power LEDs in automotive applications. It is ideal for applications such as driver monitoring system.The NCV30161 operates with an input voltage range from 6.3 V to 40 V. The hysteretic control gives good power supply rejection and fast response during load transients and PWM dimming to LED arrays of varying number and type.A dedicated PWM input (DIM/EN) enables a wide range of pulsed dimming, and a high switching frequency allows the use of smaller external components minimizing space and cost. Protection features include resistor−programmed constant LED current, shorted LED protection, under−voltage and thermal shutdown. The NCL30161 is available in a DFN10 3 mm x 3 mm wettable flank package
