082-668 Series
Manufacturer: Amphenol RF
Beta
⌘K
CONN TYPE N 0HZ TO 18GHZ 50OHM ST CABLE MOUNT RCP SILVER SINGLE
| Part | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Housing Color | Cable Group | Center Contact Plating | Connector Style | Frequency - Max [Max] | Contact Termination | Dielectric Material | Connector Type | Shield Termination | Body Finish | Mating Cycles | Body Material | Number of Ports | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

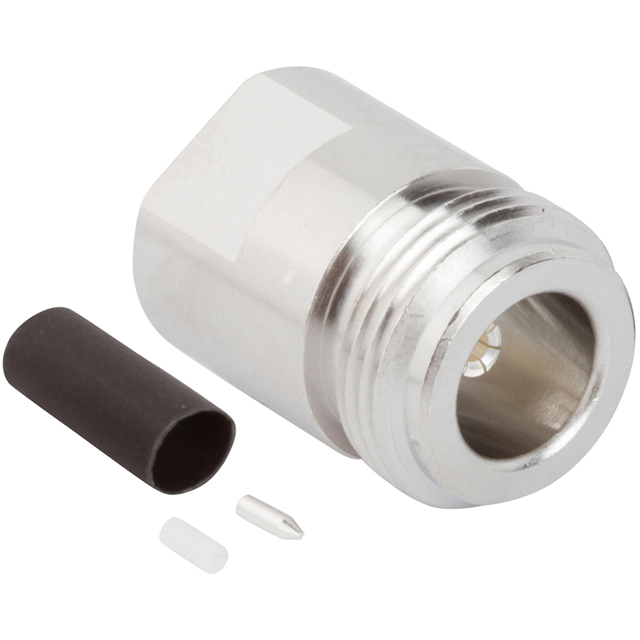

 Amphenol RF | Beryllium Copper | -65 ░C | 165 °C | 50 Ohms | Silver | RG-405 (.085" Semi Rigid .085" Conformable) | Silver | N Type | 18 GHz | Solder | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Solder | White Bronze | 500 | Brass | 1 | Free Hanging (In-Line) | |

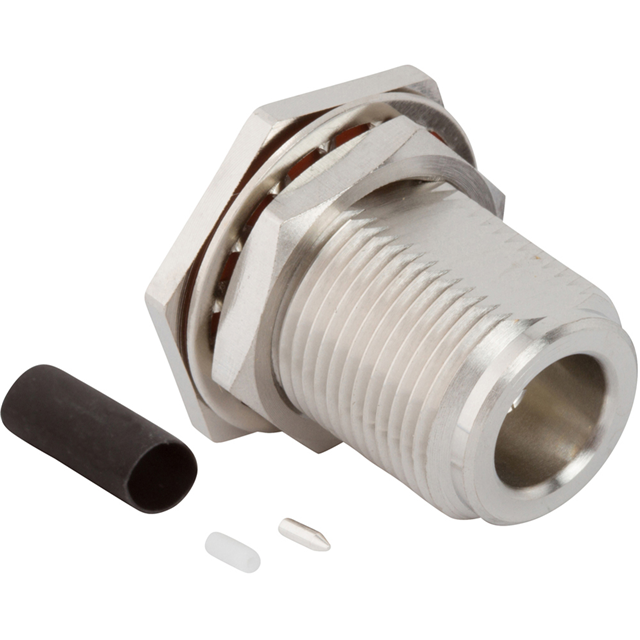

 Amphenol RF | Beryllium Copper | -65 ░C | 165 °C | 50 Ohms | Silver | RG-405 (.085" Semi Rigid .085" Conformable) | Silver | N Type | 18 GHz | Solder | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Solder | White Bronze | 500 | Brass | 1 | Bulkhead - Front Side Nut |
