745-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Read Out	Card Type	Termination	Contact Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Material	Contact Finish	Number of Positions/Bay/Row	Gender	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Rows	Number of Rows

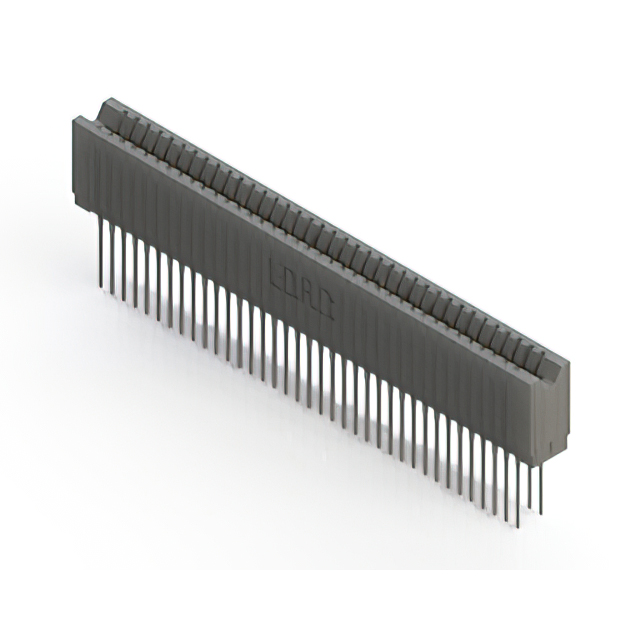

EDAC Inc. 745-074-545-206	Polyester Thermoplastic	2	Dual	Non Specified - Dual Edge	Press-Fit	Cantilever	2	30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	37	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole
EDAC Inc. 745-074-520-206	Polyester Thermoplastic	2	Dual	Non Specified - Dual Edge	Press-Fit	Cantilever	2	30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	37	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole
EDAC Inc. 745-074-522-101	Polyester Thermoplastic		Single	Non Specified - Single Edge	Press-Fit	Cantilever		30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole	1	1
EDAC Inc. 745-074-545-101	Polyester Thermoplastic		Single	Non Specified - Single Edge	Press-Fit	Cantilever		30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole	1	1
EDAC Inc. 745-074-540-201	Polyester Thermoplastic	2	Dual	Non Specified - Dual Edge	Press-Fit Wire Wrap	Cantilever	2	30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	37	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole

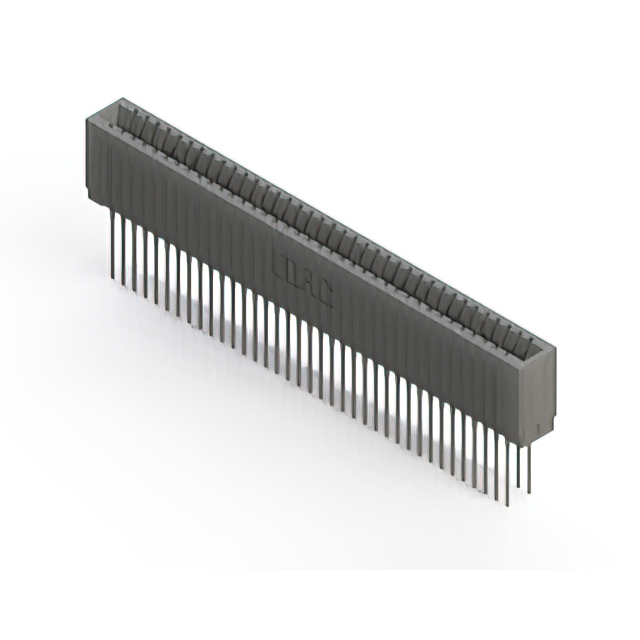

EDAC Inc. 745-074-541-201	Polyester Thermoplastic	2	Dual	Non Specified - Dual Edge	Press-Fit Wire Wrap	Cantilever	2	30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	37	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole
EDAC Inc. 745-074-540-106	Polyester Thermoplastic		Single	Non Specified - Single Edge	Press-Fit Wire Wrap	Cantilever		30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole	1	1
EDAC Inc. 745-074-525-106	Polyester Thermoplastic		Single	Non Specified - Single Edge	Press-Fit	Cantilever		30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole	1	1
EDAC Inc. 745-074-522-206	Polyester Thermoplastic	2	Dual	Non Specified - Dual Edge	Press-Fit	Cantilever	2	30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	37	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole
EDAC Inc. 745-074-541-101	Polyester Thermoplastic		Single	Non Specified - Single Edge	Press-Fit Wire Wrap	Cantilever		30 Áin	0.76 Ám	0.1 "	2.54 mm	Copper Alloy	Gold	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	74	-40 C	105 ░C	Through Hole	1	1
