7441-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

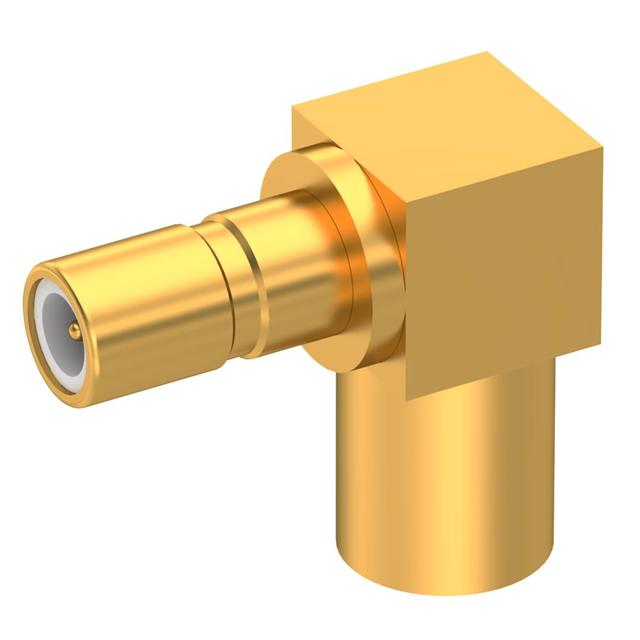

SSMB / RIGHT ANGLE JACK MALE SOL
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Mating Cycles | Body Finish | Dielectric Material | Impedance | Number of Ports | Center Contact Material | Fastening Type | Shield Termination | Contact Termination | Connector Type | Frequency - Max [Max] | Mounting Type | Housing Color | Connector Style | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Gold | 250 V | 500 | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 | Beryllium Copper | Snap-On | Crimp | Crimp | Jack Male Pin | 12.4 GHz | Free Hanging (In-Line) Right Angle | Gold | SSMB | 188 316 RG-174 |
