SCR47B Series

Manufacturer: KEMET

Catalog

CHOKE, COMMON MODE, 1 MH, 35 A, 500 VAC/VDC, RADIAL LEADED, SCR SERIES

Part	Voltage Rating - DC	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Number of Lines	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Package / Case	Height (Max) [z]	Height (Max) [Max] [z]	Filter Type	Mounting Type	Height (Max) [z]	Size / Dimension [diameter]	Size / Dimension [diameter]

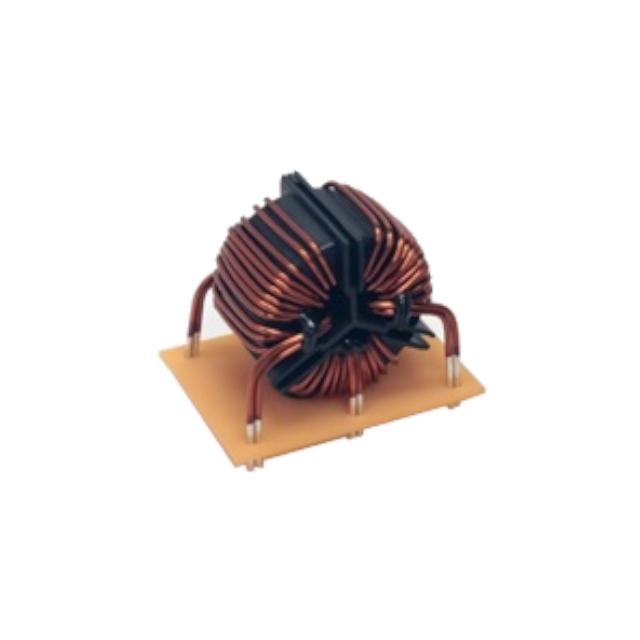

KEMET SCR47B-350-S2R0B010J	500 V	1 mH	2.5 mOhm	3	500 V	120 °C	-25 °C	35 A	Vertical 6 PC Pin	65 mm	2.559 in	Power Line	Through Hole

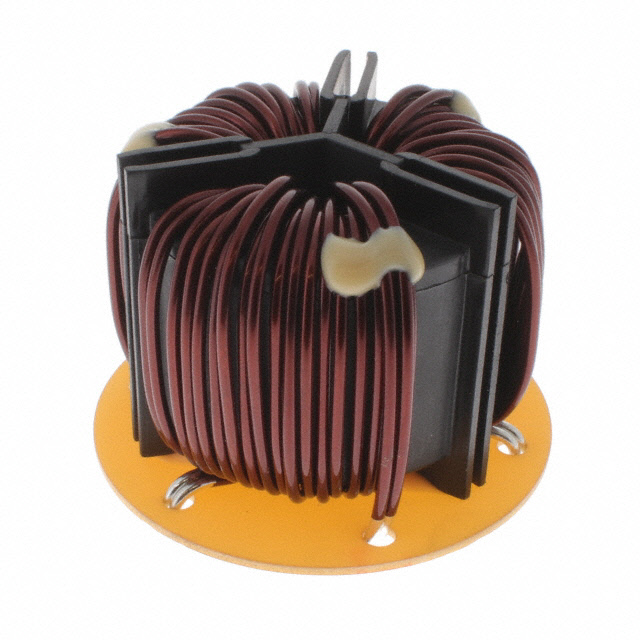

KEMET SCR47B-300-S1R7B020JH	500 V	2 mH 10 kHz		3	500 V	120 °C	-25 °C	30 A	Horizontal 6 PC Pin	1.969 in		Power Line	Through Hole	50 mm	2.756 in	70 mm
