2823339 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

50P,2MM,SHRD HDR,DRVT,2.8,0.1AU,

Part	Insulation Color	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Insulation Material	Contact Material	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Current Rating (Amps)	Number of Positions	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Features	Style
TE Connectivity Raychem Cable Protection 5-2823339-0	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	50	Square	4 mm	0.157 in	All

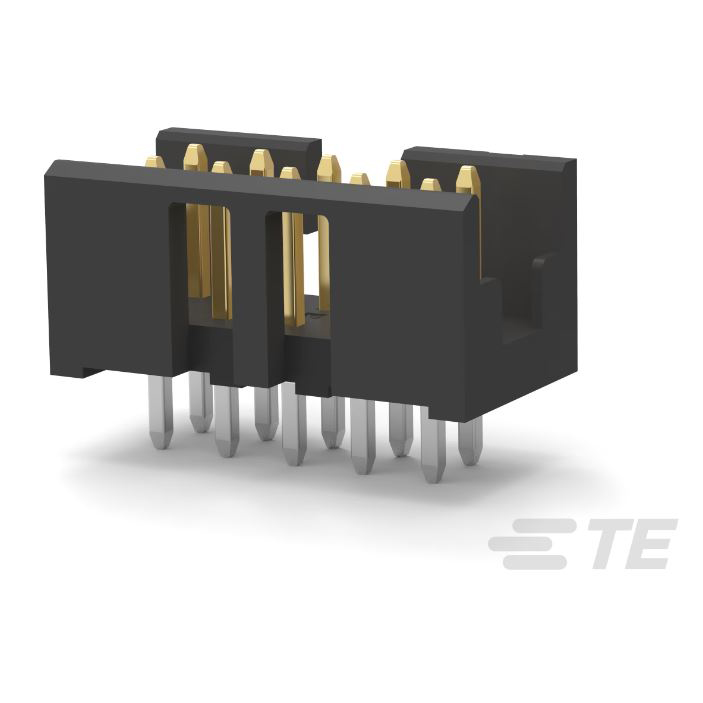

TE Connectivity Raychem Cable Protection 2-2823339-4	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	24	Square	4 mm	0.157 in	All
TE Connectivity Raychem Cable Protection 1-2823339-8	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	18	Square	4 mm	0.157 in	All

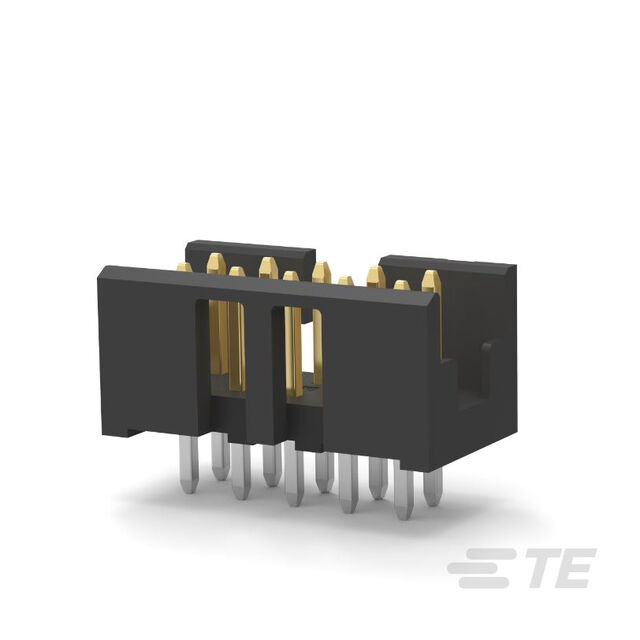

TE Connectivity Raychem Cable Protection 2-2823339-0	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	20	Square	4 mm	0.157 in	All

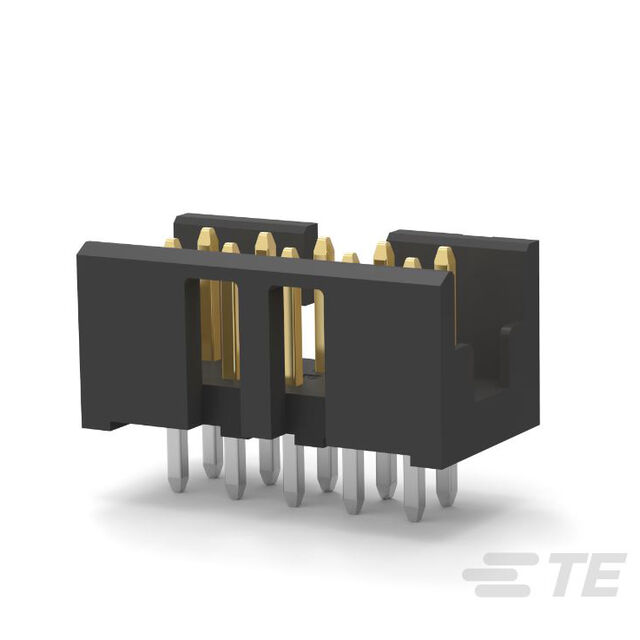

TE Connectivity Raychem Cable Protection 4-2823339-0	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	40	Square	4 mm	0.157 in	All

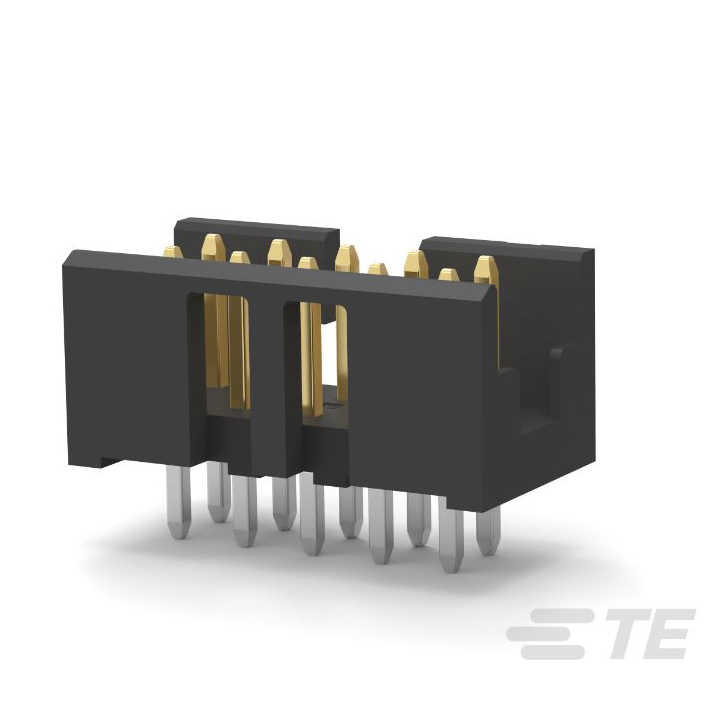

TE Connectivity Raychem Cable Protection 1-2823339-6	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A		Square	4 mm	0.157 in	All	16

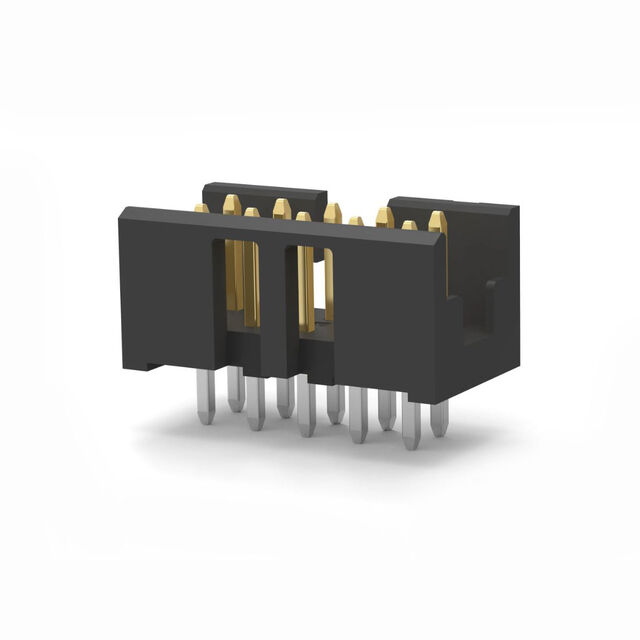

TE Connectivity Raychem Cable Protection 3-2823339-0	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	30	Square	4 mm	0.157 in	All
TE Connectivity Raychem Cable Protection 2823339-8	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Push-Pull	Thermoplastic	Phosphor Bronze	Header			3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 4 Wall	2 A	8	Square	4 mm	0.157 in	All		0.217 "	5.5 mm	Pick and Place	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 1-2823339-2	Black	Male Pin	157.5 Áin	4 Ám	0.11 in	2.8 mm	Detent Lock	Thermoplastic	Phosphor Bronze	Header	5.51 mm	0.217 in	3.94 µin	0.1 µm	Solder	0.079 in	2 mm	0.079 in	2 mm	Tin	Through Hole	Gold	2	UL94 V-0	125 VAC	125 °C	-40 °C	Shrouded - 2 Wall	2 A	12	Square	4 mm	0.157 in	All
