SDR7045 Series
Manufacturer: Bourns Inc.
Beta
⌘K

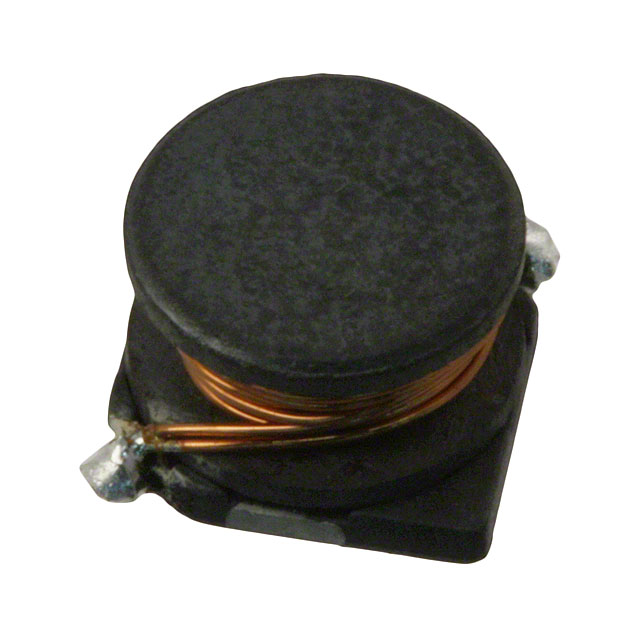

SURFACE MOUNT POWER INDUCTOR, SDR7045 SERIES, 68 H, 10%, UNSHIELDED, 0.28 OHM, 900 MA ROHS COMPLIANT: YES
| Part | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Frequency - Self Resonant | Current - Saturation (Isat) | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Type | Mounting Type | Inductance Frequency - Test | Inductance | Shielding | Q @ Freq | Material - Core | Q @ Freq [custom] | Q @ Freq [custom] | Q @ Freq [custom] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 280 mOhm | 0.189 " | 4.8 mm | 11 MHz | 920 mA | 10 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 900 mA | Drum Core Wirewound | Surface Mount | 100 kHz | 68 µH | Unshielded | 2.52 MHz 17 | Ferrite | ||||
 Bourns Inc. | 430 mOhm | 0.189 " | 4.8 mm | 10 MHz | 720 mA | 10 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 750 mA | Drum Core Wirewound | Surface Mount | 100 kHz | 100 µH | Unshielded | 17 796 kHz | Ferrite | ||||
Bourns Inc. | 230 mOhm | 0.189 " | 4.8 mm | 11 MHz | 1.1 A | 10 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 1 A | Drum Core Wirewound | Surface Mount | 100 kHz | 47 µH | Unshielded | 2.52 MHz 21 | Ferrite | ||||
Bourns Inc. | 42 mOhm | 0.189 " | 4.8 mm | 38 MHz | 3.4 A | 20 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 2.6 A | Drum Core Wirewound | Surface Mount | 100 kHz | 4.7 ÁH | Unshielded | Ferrite | 23 | 7.96 MHz | |||
 Bourns Inc. | 1.85 Ohm | 0.189 " | 4.8 mm | 4 MHz | 300 mA | 10 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 0.34 A | Drum Core Wirewound | Surface Mount | 100 kHz | 470 µH | Unshielded | Ferrite | 20 | 796 kHz | |||
Bourns Inc. | 0.189 " | 4.8 mm | 18 MHz | 1.32 A | 20 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 1.22 A | Drum Core Wirewound | Surface Mount | 100 kHz | 33 µH | Unshielded | 2.52 MHz 20 | Ferrite | 150 mOhm | ||||
Bourns Inc. | 0.189 " | 4.8 mm | 79 MHz | 4 A | 20 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 3.3 A | Drum Core Wirewound | Surface Mount | 100 kHz | 2.2 µH | Unshielded | 7.96 MHz 24 | Ferrite | 32 mOhm | ||||
Bourns Inc. | 0.189 " | 4.8 mm | 90 MHz | 5 A | 20 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 3.8 A | Drum Core Wirewound | Surface Mount | 100 kHz | 1.2 µH | Unshielded | 7.96 MHz 25 | Ferrite | |||||
Bourns Inc. | 1.24 Ohm | 0.189 " | 4.8 mm | 6 MHz | 400 mA | 10 % | 0.276 " | 0.276 in | 7 mm | 7 mm | Nonstandard | 125 °C | -40 C | 0.42 A | Drum Core Wirewound | Surface Mount | 100 kHz | 330 µH | Unshielded | Ferrite | 20 | 796 kHz |
