76703TS Series
Manufacturer: Belden Inc.
Beta
⌘K

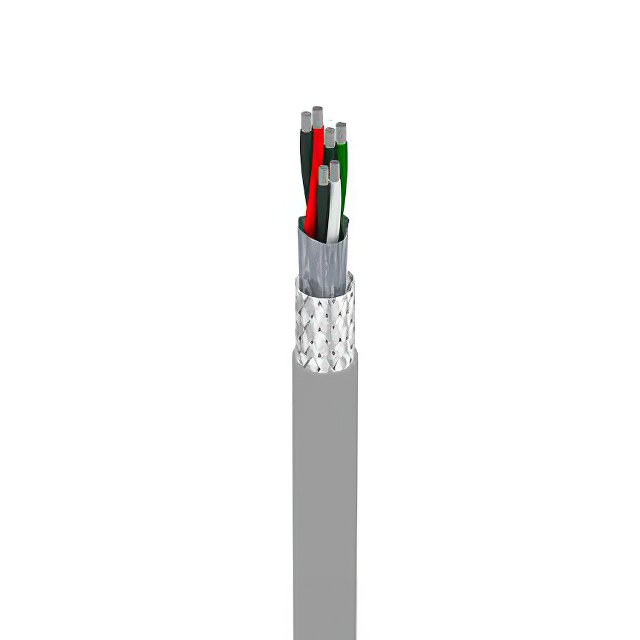

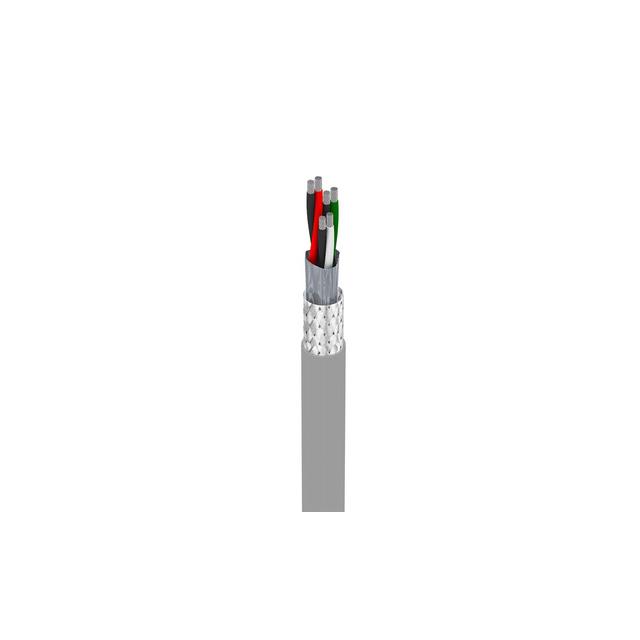

MULTI-PAIR 6COND 22AWG GRAY
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Jacket Color | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Number of Conductors | Wire Gauge | Voltage | Ratings | Conductor Insulation | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Cable Type | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 100 ft | 30.5 m | Gray | Copper Tinned | 34 AWG | 19 | 0.301 in | 7.65 mm | 6 | 22 AWG | 300 VDC | UL Style 20006 | Poly-Vinyl Chloride (PVC) | Braid Foil | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Drain Wire Oil Resistant | Multi-Pair | |||
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Gray | Copper Tinned | 34 AWG | 19 | 0.301 in | 7.65 mm | 6 | 22 AWG | 300 VDC | UL Style 20006 | Poly-Vinyl Chloride (PVC) | Braid Foil | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Drain Wire Oil Resistant | Multi-Pair | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
