M2011B2 Series

Catalog

SWITCH TOGGLE SPST 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Switch Function	Actuator Length [x]	Circuit	Current Rating (Amps)	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Illumination	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Features	Ingress Protection
NKK Switches M2011B2B1W01-AT4181	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount

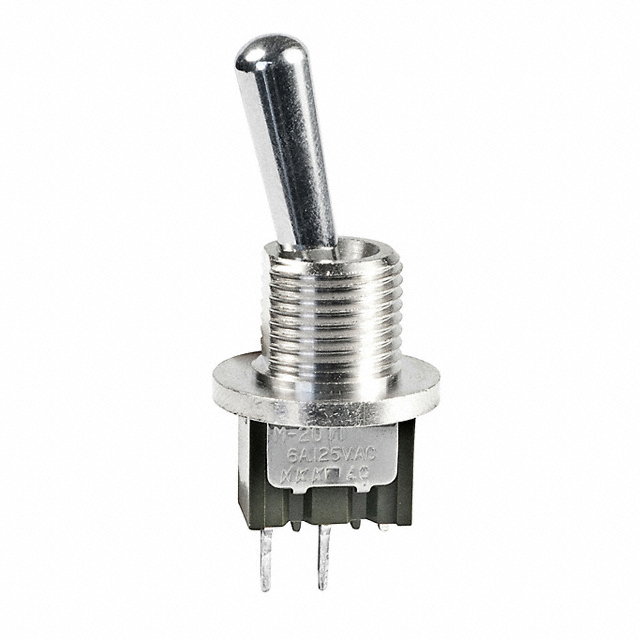

NKK Switches M2011B2B3W03	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	PC Pin	85 °C	-30 ░C	125 V	Panel Mount	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof

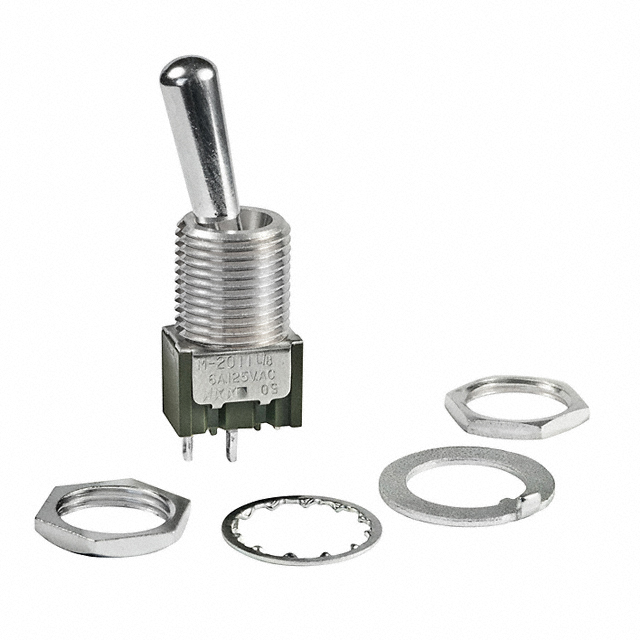

NKK Switches M2011B2B1W01	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount	Epoxy Sealed Terminals

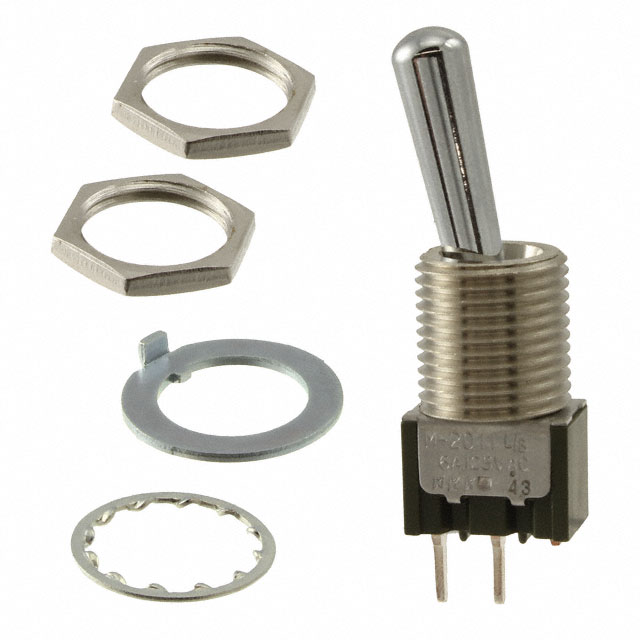

NKK Switches M2011B2B1W03	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	PC Pin	85 °C	-30 ░C	125 V	Panel Mount	Epoxy Sealed Terminals
NKK Switches M2011B2B1W01-AT401H	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount
NKK Switches M2011B2B3W01/CUL	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2011B2B1W01-AT401A	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount

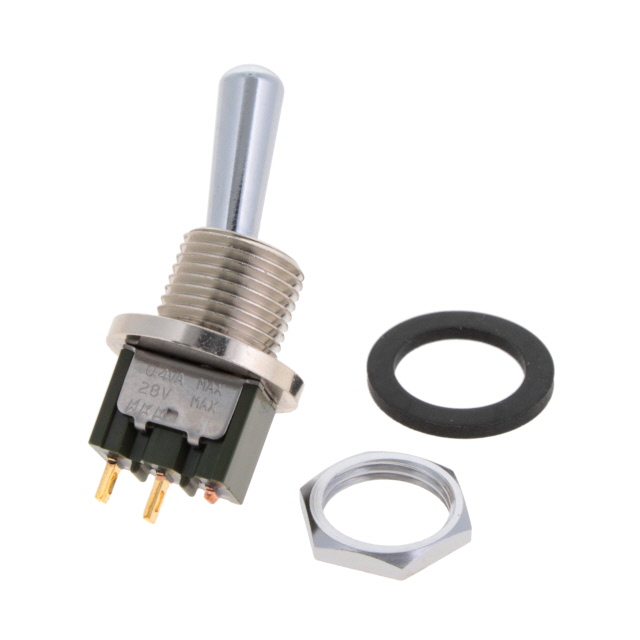

NKK Switches M2011B2B3G01	50000 Cycles	Brass Chrome Plated	28 V	On-Off	17.5 mm	SPST	0.4 VA	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	28 V	Panel Mount	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof

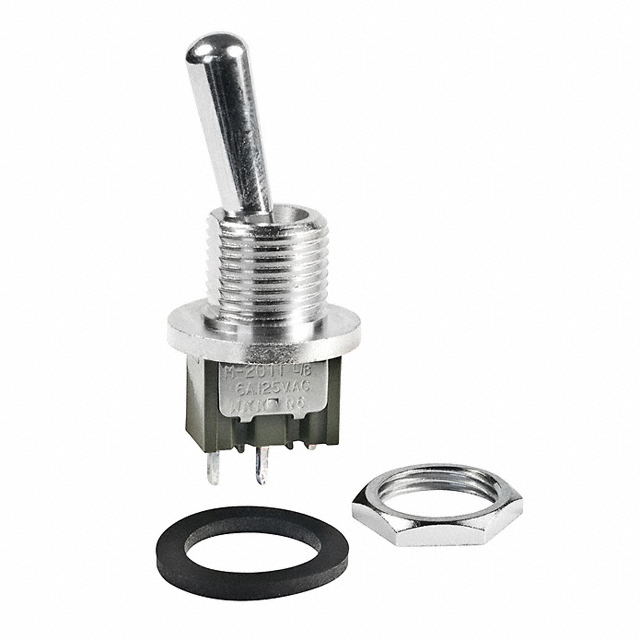

NKK Switches M2011B2B3W01	25000 Steps	Brass Chrome Plated	30 V	On-Off	17.5 mm	SPST	4 A 6 A	Standard Round	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2011B2B3W01-VA	25000 Steps	Brass Chrome Plated	30 V	On-Off	18.5 mm	SPST	4 A 6 A	Standard Round with Cap	M12 x 1	12.5 mm	Non-Illuminated	Solder Lug	85 °C	-30 ░C	125 V	Panel Mount	Black Cap	IP67 - Dust Tight Waterproof
