10-471 Series
Manufacturer: Coax Connectors Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

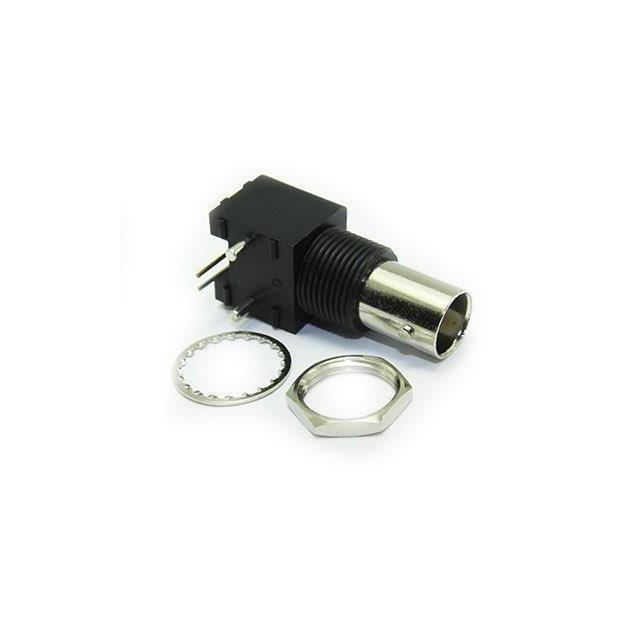

BNC R/A PCB MOUNT BH JACK LOW PR
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Center Contact Plating | Mating Cycles | Body Material | Body Finish | Dielectric Material | Impedance | Housing Color | Mounting Feature | Connector Style | Ingress Protection Description | Ingress Protection IP Rating | Center Contact Material | Fastening Type | Frequency - Max | Number of Ports | Shield Termination | Connector Type | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coax Connectors Ltd | 155 °C | -55 °C | Gold | 250 cycles | Brass | Nickel | Polytetrafluoroethylene (PTFE) | 75 Ohm | Silver | Bulkhead Front Side Nut | BNC | Dust Tight Water Resistant | IP64 | Phosphor Bronze | Bayonet Lock | 1 GHz | 1 | Solder | Female Socket Jack | Solder | Panel Mount Right Angle Through Hole |
