G10LAC-P Series
Manufacturer: ODU
Beta
⌘K

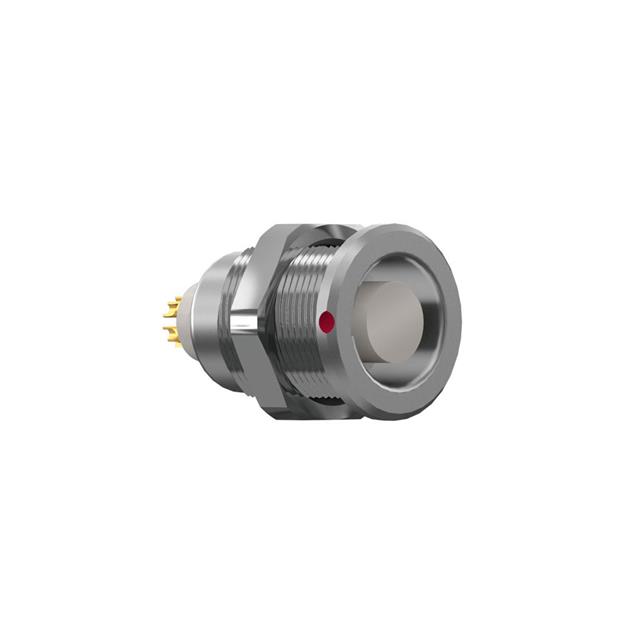

CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Orientation | Fastening Type | Connector Type | Mounting Feature | Shell Size - Insert [custom] | Contact Finish - Mating | Mounting Type | Shell Material | Contact Material | Color | Shell Finish | Features | Current Rating (Amps) | Shielding | Number of Positions | Applications | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 7.5 A | Shielded | 4 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) | |
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 4 A | Shielded | 10 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) | |
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 7.5 A | Shielded | 5 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) | |
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 4 A | Shielded | 9 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) | |
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 4 A | Shielded | 6 | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) | |
A | Push-Pull | Receptacle Female Sockets | Bulkhead - Rear Side Nut | 0 | Gold | Panel Mount | Brass | Brass | Silver | Chrome over Nickel | Ground | 7.5 A | Shielded | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 120 °C | -40 C | Metal | Polyetheretherketone (PEEK) |
