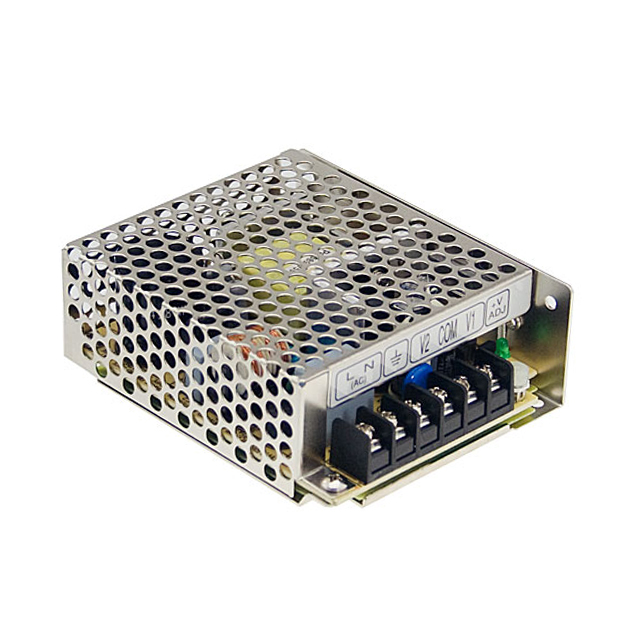

RS-35 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 15V 36W
| Part | Minimum Load Required | Number of Outputs | Approval Agency | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Power (Watts) | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Features | Applications | Current - Output 1 | Mounting Type | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | CB CE cURus TUV | Enclosed | 99 mm | 1.42 " | 82 mm | 36 mm | 3.23 in | 3.9 " | 3000 V | 36 W | 15 V | 88 VAC 125 VDC | 264 VAC 373 VDC | Adjustable Output Universal Input | ITE (Commercial) | 2.4 A | Chassis Mount | 86 % | 70 °C | -25 °C | |
MEAN WELL USA Inc. | 1 | CB CE cURus TUV | Enclosed | 99 mm | 1.42 " | 82 mm | 36 mm | 3.23 in | 3.9 " | 3000 V | 36 W | 24 V | 88 VAC 125 VDC | 264 VAC 373 VDC | Adjustable Output Universal Input | ITE (Commercial) | 1.5 A | Chassis Mount | 88 % | 70 °C | -25 °C | |
MEAN WELL USA Inc. | 1 | CB CE cURus TUV | Enclosed | 99 mm | 1.42 " | 82 mm | 36 mm | 3.23 in | 3.9 " | 3000 V | 23 Watts | 3.3 V | 88 VAC 125 VDC | 264 VAC 373 VDC | Adjustable Output Universal Input | ITE (Commercial) | 7 A | Chassis Mount | 76.5 % | 70 °C | -25 °C |
