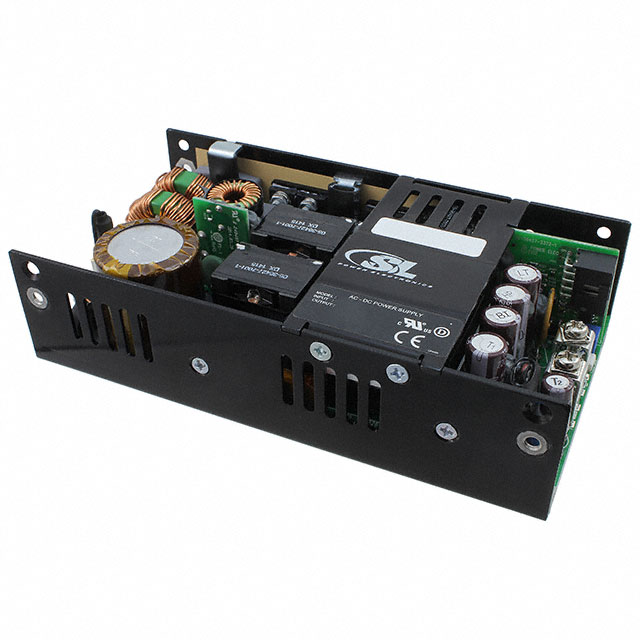

TU425S18 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 18V 14.6(CONVECTION)A/21.5(FORCED AIR)A 425W 19-PIN
| Part | Minimum Load Required | Features | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Isolation | Efficiency | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Power (Watts) | Type | Current - Output 1 | Approval Agency | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | DC Input Capable Load Sharing Remote Sense Standby Output Universal Input | 18 V | 70 °C | -10 °C | ITE (Commercial) | 4000 V | 88 % | 1 | 264 VAC | 90 VAC | 300 W | 425 W | Open Frame | 14.6 A | CE cURus DEMKO | Chassis Mount | 83.8 mm | 6.2 in | 1.62 " | 41.1 mm | 3.3 " | 157.4 mm |
